Industrial Ultrasound Processor Titanium Material Probe Dispersing And Deagglomeration

  • CHINA
  • GS2020-F
  • Shanghai/Ningbo
  • 1
  • 100% TT IN ADVANCE

  • Contact Now
Product Details

Industrial Ultrasound Processor Titanium Material Probe Dispersing And Deagglomeration



Minimum Order Quantity:

1 Set

Price:

Ask for quote

Packaging Details:

Foam case

Delivery Time:

In 7 Working Days

Payment Terms:

T/T, WESTERN UNION

Supply Ability:

100 Sets/Month



Altrasonic equipment focused on the r&d of high power ultrasound applications. Altrasonic has absolute

leading core technology, the most stable and mature manufacturing technology, rich experience, can provide direct ultrasonic application scheme demonstrate, structure design, system configuration and related parts production.


Ultrasound is a well-established method for particle size reduction in dispersions and emulsions. Ultrasonic processors are used in the generation of nano-size material slurries, dispersions and emulsions because of the potential in the deagglomeration and the reduction of primaries. These are the mechanical effects of ultrsonic cavitation. Ultrasonic can also be used to influence chemical reactions by the cavitation energy.

As the market for nano-size materials grows, the demand for ultrasonic processes at production level increases.


Lab level

Recommendation of ultrasonic system (exfoliated type)


Item No. GS205-L GS2020-L
Capacity 5L 20L
Output power 500W 2000W
Main advantages High output intensity, high cavitation effect
Frequency 20 kHz±1kHz



Industrial level

Recommendation of ultrasonic system (Dispersing type)

Item No. GS2010 GS2015 GS205-F GS2010-F GS2020-F  GS2030-F
Capacity 20L 30L 10L 20L 30L  100L
Output power 1000w 1500w 500w 1000w 2000w  3000w
Frequency 20 kHz±1kHz 20 kHz±1kHz 20 kHz±1kHz 20 kHz±1kHz 20 kHz±1kHz  20 kHz±1kHz
Working type Reactor / container Reactor / container

Recycling

/ Flow chamber

Recycling

/ Flow chamber

Recycling

/ Flow chamber



Recycling

/ Flow chamber

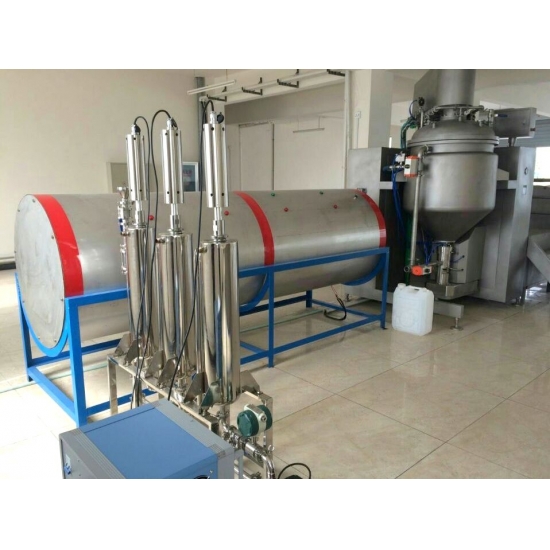

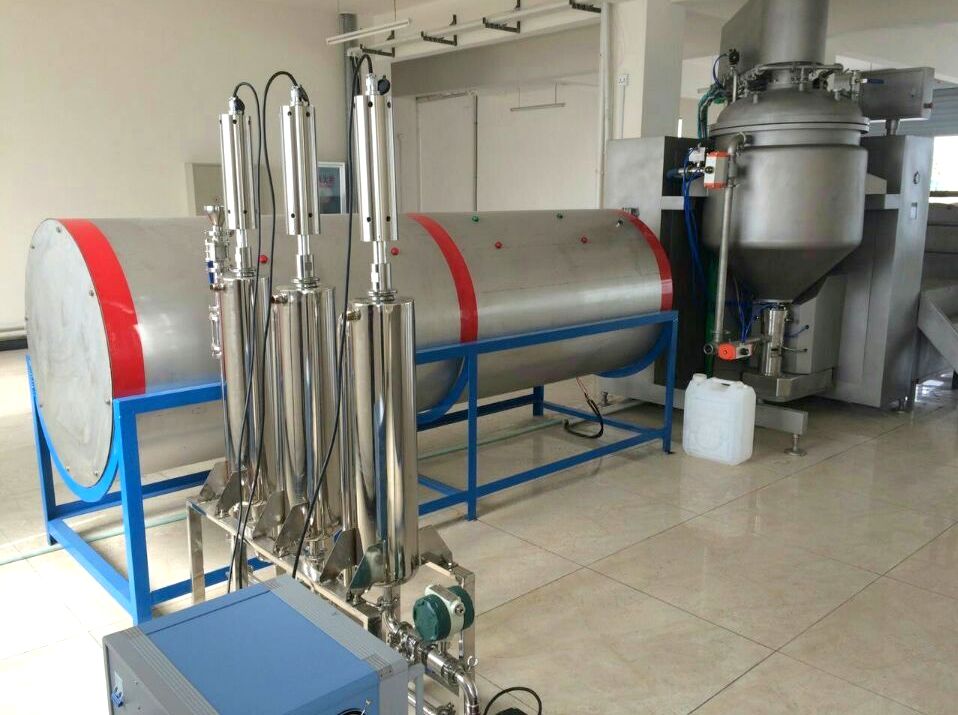

Recommendation of ultrasonic machine (Industrial level)


Ultrasonic Probe / Ultrasonic digital generator / Control system assembly / Reactor assembly / Rack and

pipe fittings


Item No. HS-GS10 HS-GS25 HS-GS50 HS-GS100 HS-GS200 HS-GS300
Annual output

10tons

25tons 30tons 100tons 200tons 300tons
Output Power

2000w

2000w 2000w 2000w 2000w 2000w
Total Power

6000w

(2000w*3)

12000w

(2000w*6)

24000w

(2000w*12)

48000w

(2000w*24)

72000w

(2000w*36)

96000w

(2000w*48)

Frequency

20kHz±1kHz

20kHz±1kHz 20kHz±1kHz 20kHz±1kHz 20kHz±1kHz 20kHz±1kHz
Input Voltage

110v  or 220v

110v  or 220v 110v  or 220v 110v  or 220v 110v  or 220v 110v  or 220v
Total Volume

5㎡

10㎡

20㎡ 40㎡ 60㎡ 80㎡


Introduction:


Ultrasound is a very effective processing method in the generation and application of nano-size materials. In general, ultrasonic cavitation in liquids may cause fast and complete degassing: initiate various chemical reactions by generating free chamical ions (radicals); accelerate chemical reactions by facilitating the mixing of reactant; produce highly concentrated emulsions or uniform dispersions of micron-size or nano-size materials. Ultrasound can be tested in lab and bench-up scale before the results are scaled up to the commercial level.


Advantages:


1. Core parts withTitanium materials.

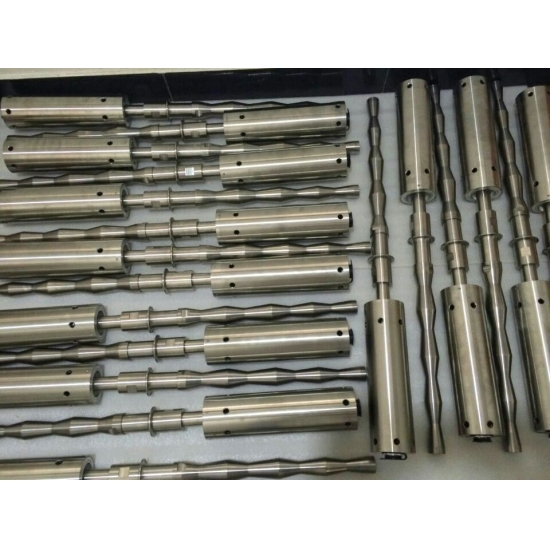

2. Ultrasonic horn with different size and type for selection

3. Matching with digital generator, auto-tuning, auto search frequency

4. Power adjustable from 1% to 99%

5. Frequency range from 19khz to 21khz

6. Lab and bench-up scale for testing



Innovation:


  1. T caps use replaceable, solve the problem of the tool head cavitation, T caps normal working hours more than 800 hours.
  2. Using the high-power ultrasonic transducer (1500w - 3000w), More stable performance, normal service life more than 10000 hours.
  3. Use of the digitally controlled power, to ensure that all the time in the best condition.
  4. Dumbbell-type tool head design, greatly improving the ultrasonic radiation power per unit area.
  5. The integrated piping made of stainless steel #316.
  6. Overall liquid flow-controllable
  7. Use network-based CAN-bus technology, all working parameters can have room remote control.


Applications:


  • Ultrasonic mixing
  • Ultrasonic dispersing and deagglomeration
  • Ultrasonic Emulsifying
  • Ultrasonic Sonochemistry
  • ......



ultrasonic dispersion
