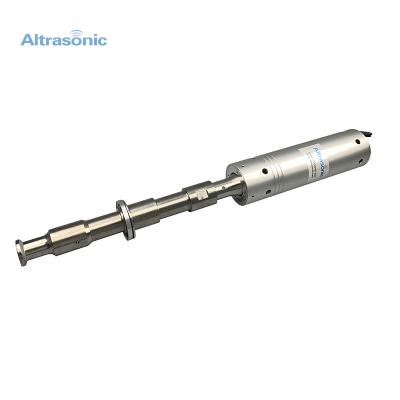

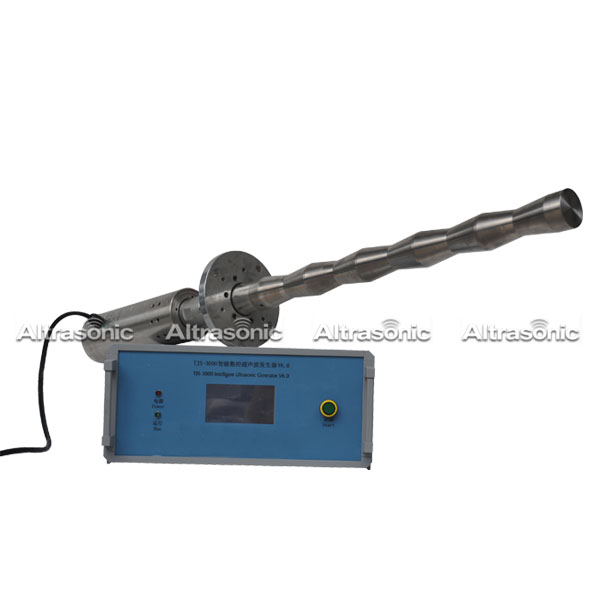

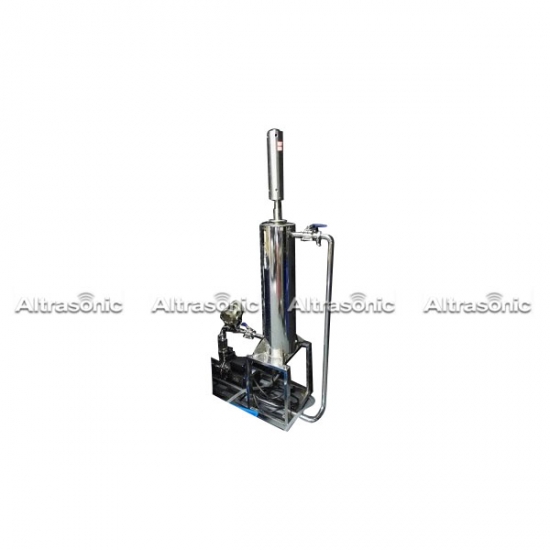

High Power Ultrasonic Processor Sonochemistry Equipment For Nano Particles Production

High Power Ultrasonic Processor Sonochemistry Equipment For Nano Particles Production

Ultrasound is a well-established method for particle size reduction in dispersions and emulsions. Ultrasonic processors are used in the generation of nano-size material slurries, dispersions and emulsions because of the potential in the deagglomeration and the reduction of primaries. These are the mechanical effects of ultrsonic cavitation. Ultrasonic can also be used to influence chemical reactions by the cavitation energy.

As the market for nano-size materials grows, the demand for ultrasonic processes at production level increases.

  • Item No.:

    GS2030-F
  • Payment:

    100% TT IN ADVANCE
  • Product origin:

    CHINA
  • Product weight:

    37Kg
  • Shipping port:

    Shanghai/Ningbo
  • Product Details


High Power Ultrasonic Processor Sonochemistry Equipment For Nano Particles Production




Minimum Order Quantity:

1 Set

Price:

Ask for quote

Packaging Details:

Foam case

Delivery Time:

In 7 Working Days

Payment Terms:

T/T, WESTERN UNION

Supply Ability:

100 Sets/Month




Description:


Altrasonic equipment focused on the r&d of high power ultrasound applications. Altrasonic has absolute

leading core technology, the most stable and mature manufacturing technology, rich experience, can provide direct ultrasonic application scheme demonstrate, structure design, system configuration and related parts production.

Ultrasound is a well-established method for particle size reduction in dispersions and emulsions. Ultrasonic processors are used in the generation of nano-size material slurries, dispersions and emulsions because of the potential in the deagglomeration and the reduction of primaries. These are the mechanical effects of ultrsonic cavitation. Ultrasonic can also be used to influence chemical reactions by the cavitation energy.

As the market for nano-size materials grows, the demand for ultrasonic processes at production level increases.




Parameters:



Model

HSS20-500

HSS20-1000-L

HSS20-1000

HSS20-1500

HSS20-2000

HSS20-3000

Frequency

20Khz

20Khz

20Khz

20Khz

20Khz

20Khz

Power

500 W

1000 W

1000 W

1500W

2000W

3000 W

Voltage

220V

220V

220V

220V

220V

220V

Temperature

150 ℃

150 ℃

150 ℃

300℃

300℃

300 ℃

Pressure

Normal

Normal

Normal

35 MPa

35 MPa

35 MPa

Intensity of sound

10 W/cm²

10 W/cm²

10 W/cm²

30 W/cm²

40 W/cm²

60 W/cm²

Max capacity

500ml/Min

2 L/Min

5L/Min

15L/Min

20L/Min

100 L/Min

Material of probe

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy













Advantages:



1. Core parts withTitanium materials.

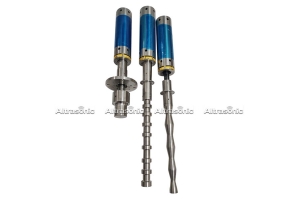

2. Ultrasonic horn with different size and type for selection

3. Matching with digital generator, auto-tuning, auto search frequency

4. Power adjustable from 1% to 99%

5. Frequency range from 19khz to 21khz

6. Lab and bench-up scale for testing




Innovation:


1. Tcaps use replaceable, solve the problem of the tool head cavitation, T caps normal working hours more than 800 hours.

2. Using the high-power ultrasonic transducer (1500w - 3000w), More stable performance, normal service life more than 10000 hours.

3. Using of the digitally controlled power, to ensure that all the time in the best condition.

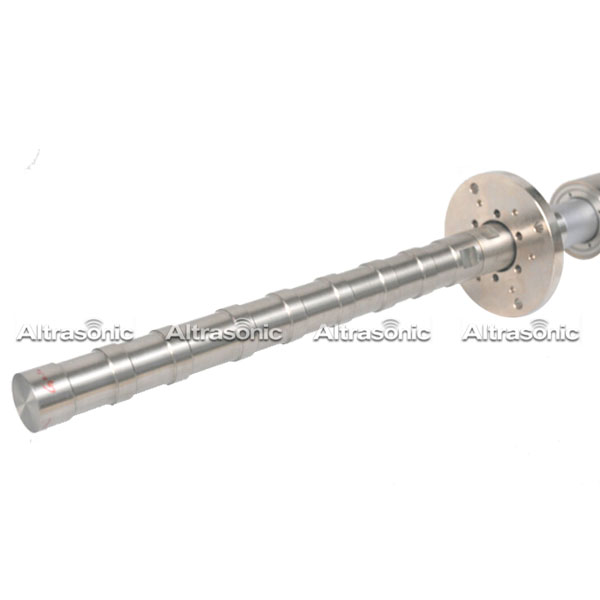

4. Dumbbell-type tool head design, greatly improving the ultrasonic radiation power per unit area.

5. The integrated piping made of stainless steel #316.

6. Overall liquid flow-controllable.

7. Use network-based CAN-bus technology, all working parameters can have room remote control.



Applications:



Ultrasonic mixing

Ultrasonic dispersing and deagglomeration

Ultrasonic Emulsifying

Ultrasonic Sonochemistry
