High Frequency Ultrasonic Puncture Welding For Auto Door Panel Interior Trim Panel Welding



Description:

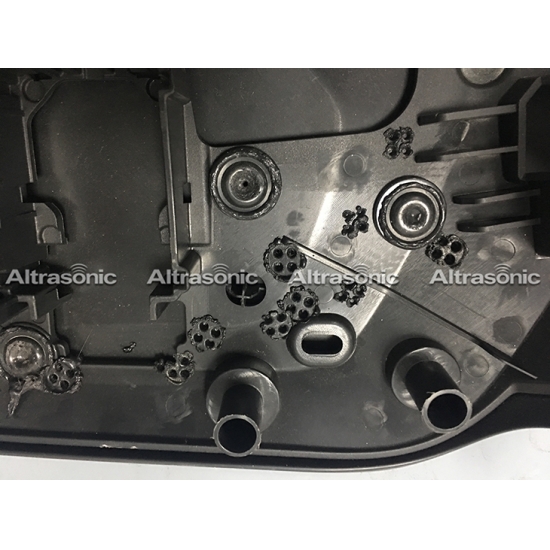

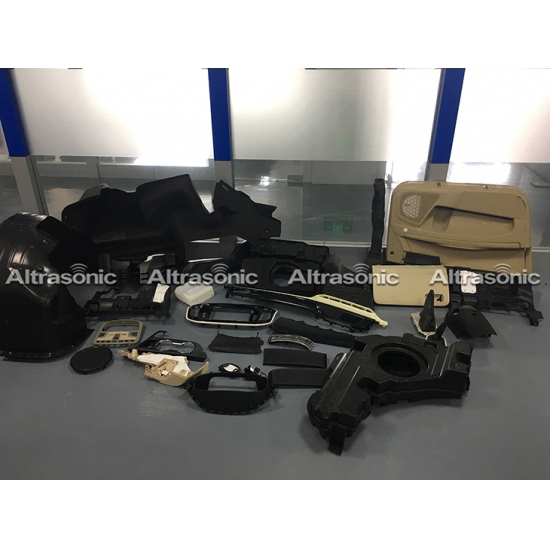

In the Auto industry, ultrasonic puncture welding is not strange to us. Take the actual internal product as a reference, Share some ultrasonic puncture welding designs for internal and external Auto parts. There are some ultrasonic puncture welding technology, such as auto wheel arch welding, car door panel welding, Auto radar support welding, Auto spoiler welding and so on.

What is ultrasonic puncture welding?


Ultrasonic puncture welding is only one kind of ultrasonic welding. It belongs to energy welding or destructive welding. It is widely used in auto industry.


Specifications:


Model HS-40 HS-35 HS-30 HS-28 HS-20
Frequency 40khz 35khz 30khz 28khz 20khz
Power 500W 500~800w 500~800w 500~800w 500~1000w
Horn ≤10mm ≤10mm ≤10mm ≤12mm ≤13mm
Housing Diameter 44mm 44mm 44mm 44mm 64mm
Weight of Welder 1.0kg 1.0kg 1.0kg 1.0kg 1.5kg

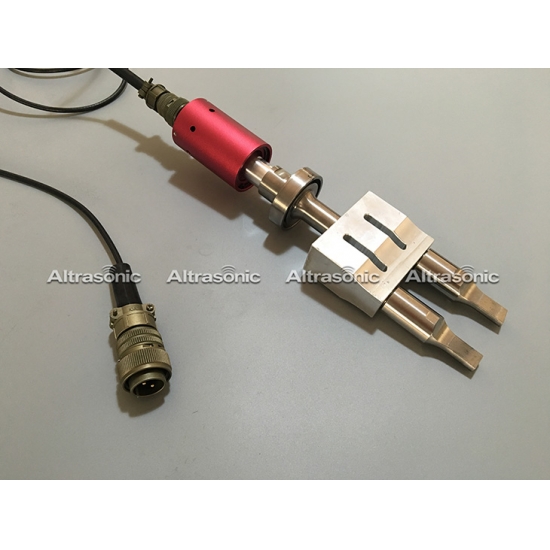

Gun and Cylinder Type of Horn



Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.

Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.
