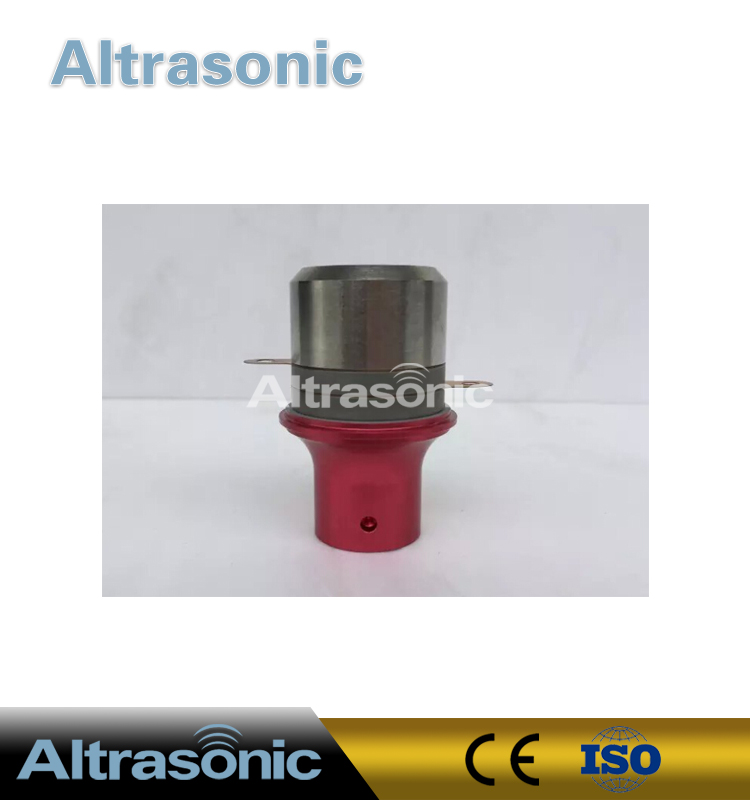

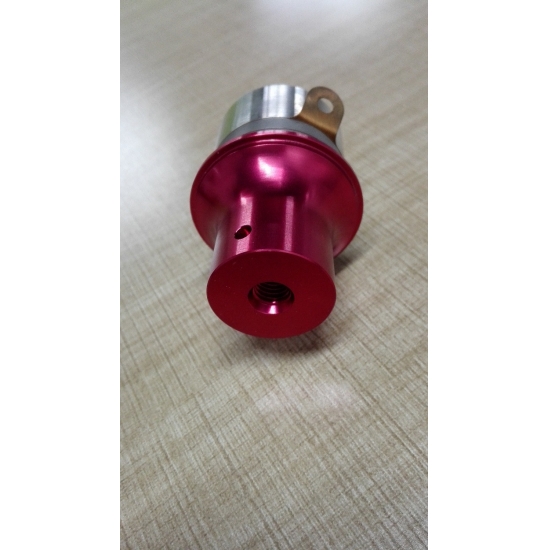

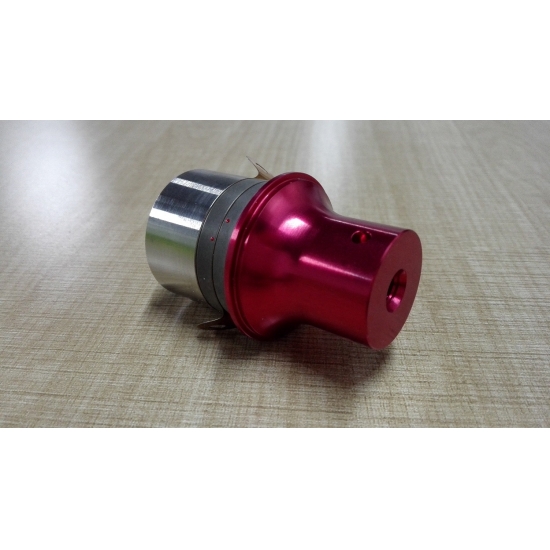

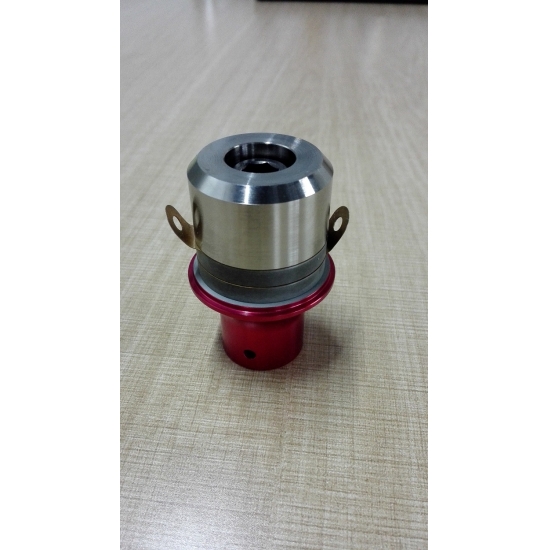

Dukane Replacement Modle Ultrasonic Converter Red 40 Khz Ultrasonic Transducer

  • China
  • Altrasonic
  • Red
  • 1

  • Contact Now
Product Details

Dukane Replacement Modle Ultrasonic Converter Ceramic 40 Khz Ultrasonic Transducer

Minimum Order Quantity:

2pcs

Price:

negotiation

Payment Terms:

T/T

Supply Ability:

200pcs per month

Delivery Time:

10 working days after received your payment

Packaging Details:

Packed in carton, and PE form inside

Specifications:


Model HS-3540-2D
Frequency 40khz
Output power 500-1000watt
Joint bolt M8*1.25
Ceramic disc Diameter 35mm
Quantity of Ceramic discs 2 pcs
Capacitance 4-5nf ,
Amplitude 6um
Application Welding

Description:


1. High Efficiency: of high mechanical factor. High transfer efficiency is obtained when working in resonance frequency.
2. Big amplitude: designed and chosen by computer, high oscillation speed and big amplitude in front operculum.
3. Big Power: under the function of the prestressed force screw rod, the piezoelectric ceramics can work freely in the highest level of power.
4. In good heat resistance: of small resonance impedance, less heat produced, can be used in a wide range of temperature with long life and high reliability.

Applications:

Our transducer can applied in the following ultrasonic machines:

Ultrasonic welding machine

All material with thermoplasticity can use Ultrasonic welding machine ,

 it can welding the material more easy and stable.Such like plastic, fabric,

 ABS, nonwovens.

Ultrasonic cutting machine

Ultrasonic food cutting is popular because the perfect edge.

Ultrasonic cutting in packing area also welcomed, it can cutting

 and sealing at the same.

Ultrasonic sewing machine

Ultrasonic sewing can sewing the material without any cotton, and keep

longer time.

Competitive Advantage:


Service: Timely feedback; Free design; 1 year Warranty.

Quality: Full testing before shipping; we reputation from customer.
