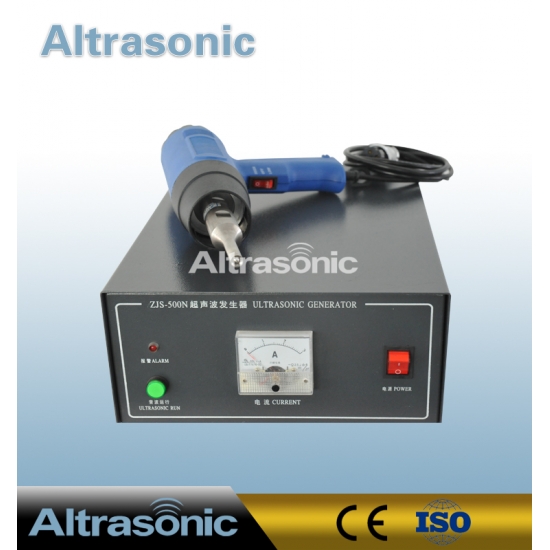

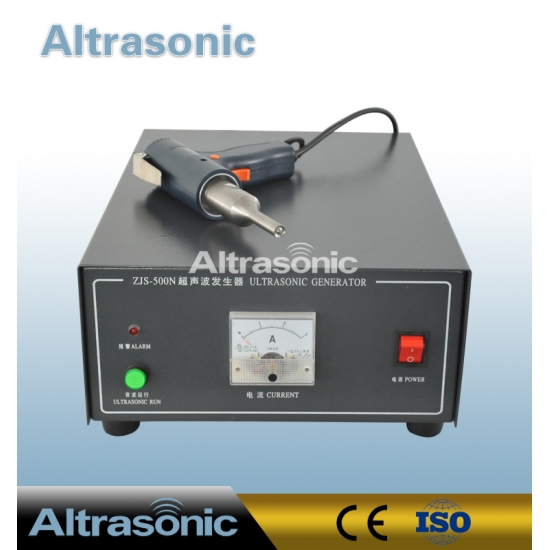

Car Air-condition Plastic Part Riveting 28Khz Ultrasonic Riveting Welder


Specification:


Frequency 28 Khz
Output Power 1000 W
Voltage AC220V±10V Or AC110V±10V , 50/60HZ
Max Current 15A
Power Adjusting Step or continuous
Horn ≤10mm
Weignt 10-15 KG   ( Determined by the size of the horn )
Generator Analog Generator



Advantages in Car Air-condition Plastic Part Riveting:


  • Light weight, easy to take, easy to operate (handheld)
  • Equipped with welding timer
  • Application in riveting, forming and welding
  • Easty to set time welding
  • Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)
  • FET power output
  • Starting: achieving maximum power with 105msec.

Condition of Ultrasonic Welding:


Ultrasonic automotive plastics as the condition of ultrasonic welding, the most important is the time to apply welding energy (vibration, welding time) length and pressure, of course, other conditions are also very important. Welding temperature ultrasonic welding material viscosity flow temperature. Otherwise the material will not melt.



Attention of Ultrasonic Welding:


With the amplitude, the higher the amplitude, the higher the temperature rise. The pressure is applied to the molded article using a cylindrical gaze. General compressed air pressure is 0.1-0.3MPa (pressure gauge), sometimes higher. But if the use of high pressure, it will hinder the cylindrical vibration.

The welding time varies depending on the material and the shape of the product. The welding time of some molded articles is only 0.2 seconds. Over time will cause excessive welding and produce a lot of flash and bubble, resulting in poor airtight, must pay attention. Cooling (holding) time For crystalline plastic, if the temperature below the melting point, the connection will be solidified, usually the pressure time is maintained between 0.1-0.2 seconds. AMMA plastic).
