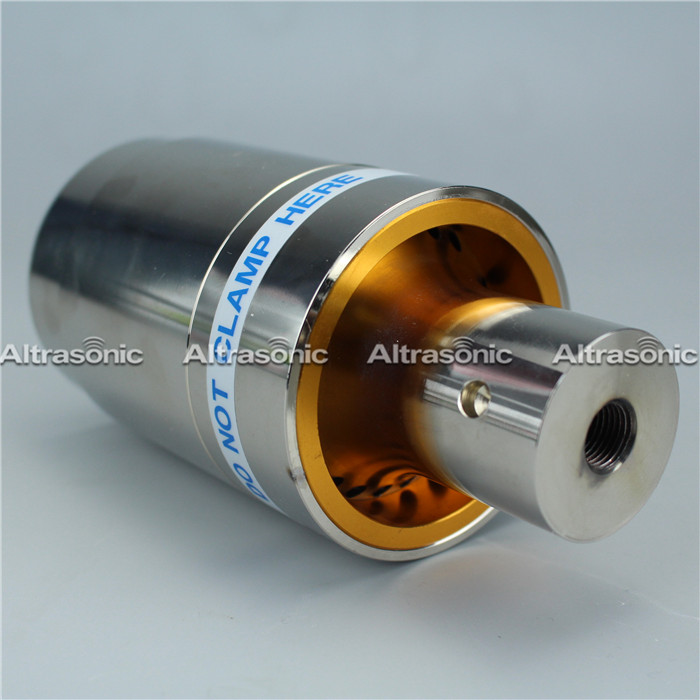

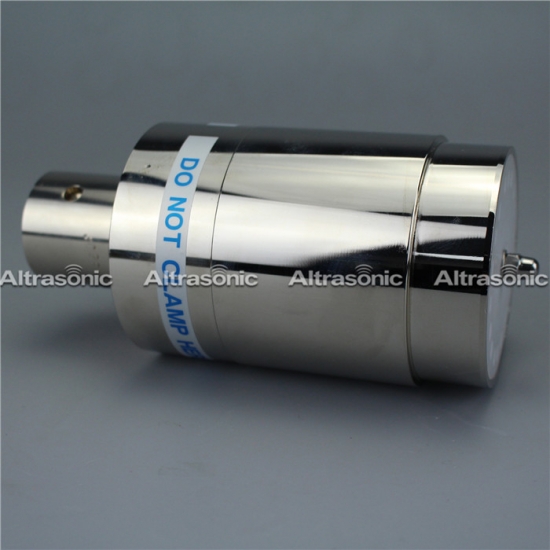

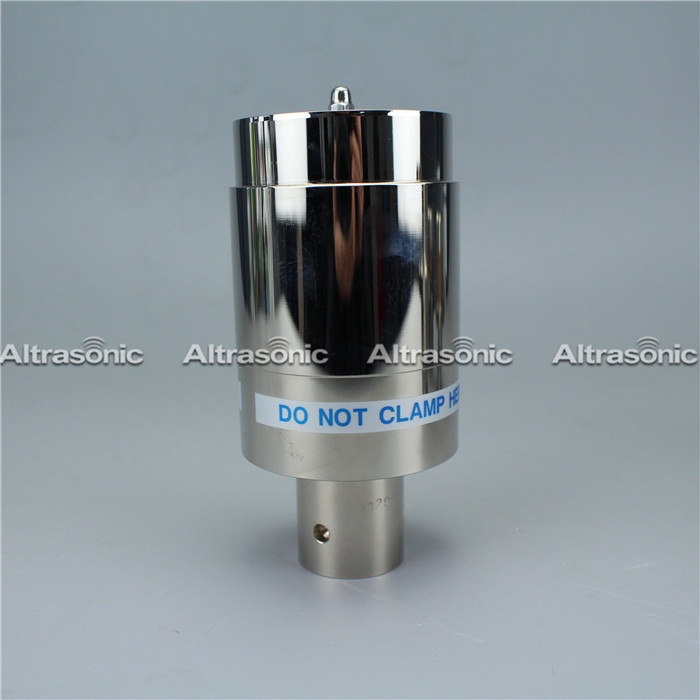

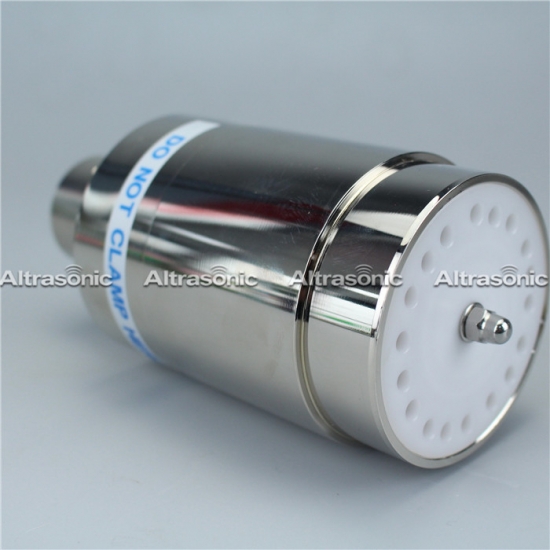

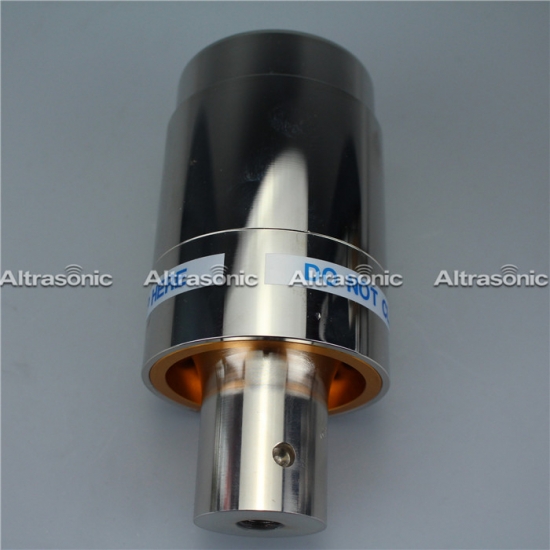

Big Amplitude Replacement Transducer 2000W , High Power Ultrasonic Branson Type 922JA Transducer

Big Amplitude Replacement Transducer 2000W , High Power Ultrasonic Branson Type 922JA Transducer

2000W High Power Ultrasonic Replacement Branson 922JA transducer with 20Khz Frequency, 11.5-12.5nf Capacitance, Replacing Branson8800/5170

  • Item No.:

    HS-B922JA
  • Payment:

    TT, West union, Paypal
  • Price:

    $699/PC
  • Product origin:

    China
  • Color:

    Silver
  • Min order:

    2
  • Shipping port:

    Ningbo or Shanghai
  • Product Details


Big Amplitude Replacement Transducer 2000W , High Power Ultrasonic Transducer




Specification:



MODEL

FREQUENCY(KHz)

Ca(pf)

Power(W)

Machine

402

19.6-20.0

7800-8500

450-900

BRANSON8400

502/922JA

19.6-20.0

11500-12500

2000

BRANSON8800/5170

CJ20

19.4-19.7

19000-21000

1100-4000

BRANSON2000 series

CB35A15A

36.5-37.5

3300-4000

800

Rinco-35A15A

CV231

38.3-39.0

3500-4500

900

40K Metal welding

CV3510

36.2-37.0

3200-4000

800

Rinco-CV3510

110-3122

19.6~20.0

12500-14000

2600

Dukane heavy duty


Info on the 922JA and 502, which is the same driver. On the 922JA they use a board with capacitor and resistor under the cap. On the 502 there is no board.




Description:



1. High Efficiency: of high mechanical factor. High transfer efficiency is obtained when working in resonance frequency.
2. Big amplitude: designed and chosen by computer, high oscillation speed and big amplitude in front operculum.
3. Big Power: under the function of the prestressed force screw rod, the piezoelectric ceramics can work freely in
 the highest level of power.

4. In good heat resistance: of small resonance impedance, less heat produced, can be used in a wide range of temperature with long life and high reliability.





Application:



Our transducer can applied in the following ultrasonic machines:

Ultrasonic welding machine

All material with thermoplasticity can use Ultrasonic welding machine ,

 it can welding the material more easy and stable.Such like plastic, fabric,

 ABS, nonwovens.

Ultrasonic cutting machine

Ultrasonic food cutting is popular because the perfect edge.

Ultrasonic cutting in packing area also welcomed, it can cutting

 and sealing at the same.

Ultrasonic sewing machine

Ultrasonic sewing can sewing the material without any cotton, and keep

longer time.





Competitive Advantage:



Service: Timely feedback; Free design; 1 year Warranty.

Quality: Full testing before shipping; we reputation from customer.
