Home Ultrasonic Welding Machine

Ultrasonic Spot Welding Machine

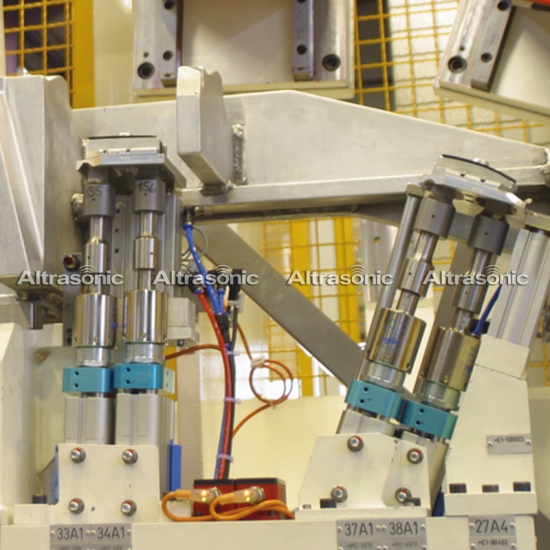

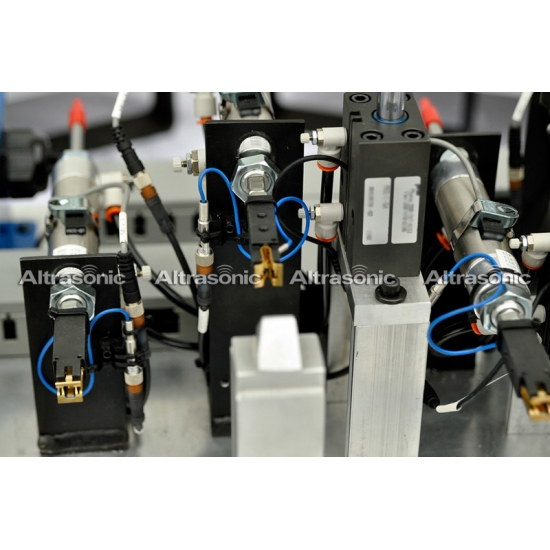

Automobile Automatic Instrument Panel Welding System with Ultrasonic Master Pattern Riveting Welding Machinery

Automobile Automatic Instrument Panel Welding System with Ultrasonic Master Pattern Riveting Welding Machinery

Riveting is used on numerous parts such as door panels, A, B and C columns, rear quarters, cockpit, bumpers etc. Riveting is possible on any material provided that the ultrasonic is applied to the thermoplastic part.

  • Product origin:

    China
  • Product Details

Automobile Automatic Instrument Panel Welding System with Ultrasonic Master Pattern Riveting Riveting Welding Machinery


Specification:


Frequency 35 Khz
Output Power 800 W
Voltage 220 V
Switch Handle
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weignt 10 KG   ( Determined by the size of the horn )
Generator Digital Generator


Definition of ultrasonic auto plastic welding:


Ultrasonic welding is a high-tech technology of sintered plastic products. The use of this technology can replace past production of flux, adhesives, buckles or other mechanical fixation, thereby improving the production efficiency and reduce costs. These welders combine technical sophistication with ease of use. They can be easily integrated in your production facilities. The principle of ultrasonic welding is through the ultrasonic generator to convert high-frequency electrical energy into higher frequency mechanical movement, then mechanical movement through a set of amplitude can be changed to the transmission device to the welding head. The welding head transmits the received vibration energy to the joint portion of the workpiece to be welded, in which the vibration energy is converted into heat energy by friction and the plastic is melted. Ultrasonic not only can be used to weld hard thermoplastics, but also can process fabrics and films. ALTRASONIC will find the best solution for your thermoplastic welding needs.

Main Advantages:

  • Application in riveting, forming and welding
  • Light weight, easy to take, easy to operate (handheld)
  • Equipped with welding timer
  • Easty to set time welding
  • Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)
  • FET power output
  • Automatic resonance
  • Maintain the amplitude function automatically
  • Starting: achieving maximum power with 105msec

Applications In Automobile:


Ultrasonic Riveting Welding is mainly used in automotive interior parts. Ultrasonic spot welding in sound-proof cotton of engine cover, trunk and wheel casing, and hallstand felt. Ultrasonic Riveting Welding can be used in automobile air-conditioning outlet welding, car rear view mirror, car door handles, hand car door and so on. Automotive plastic parts are mostly welded in non-standard ultrasonic welding equipment, long multi-station design, with PCL program control and LCD operation, large automotive complex workpiece welding, including different directions of the welding surface, in multiple locations.
