Auto Right and Left Wheel Cover Outer Plate Assembly Ultrasonic Puncture Welding Machine



Description:

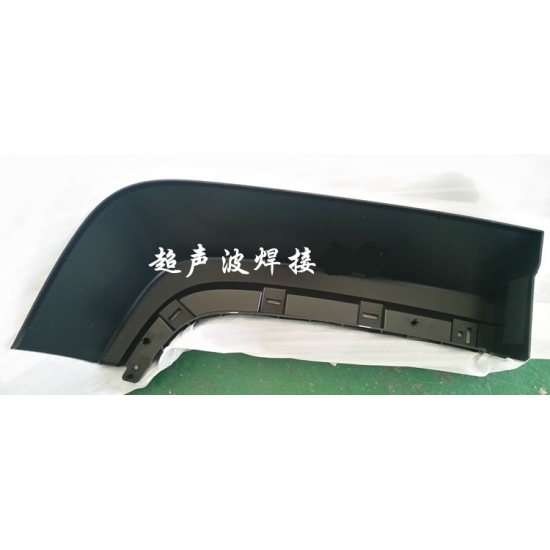

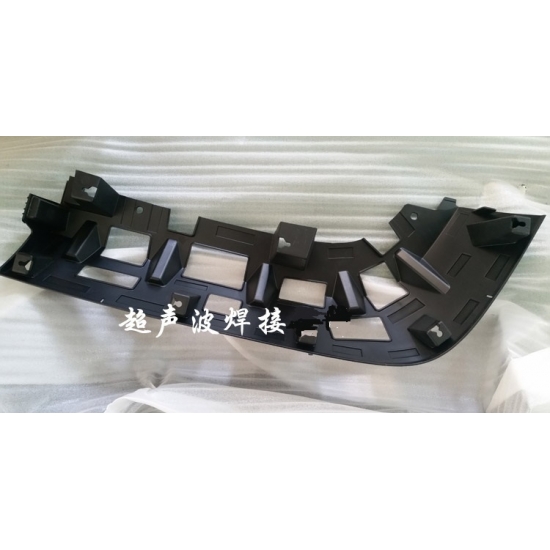

Auto right and left front wheel cover outer plate assembly ultrasonic puncture welding machine also known as car front and rear door trim panel assembly ultrasonic welding tooling. It is the use of ultrasonic technology to weld the car wheel cover trim components, use PLC to control the touch screen display parameters, and use a multihead ultrasonic welding machine to weld once.


It is to weld the outer plate assembly of automobile wheel cover together with ultrasonic puncture welding technology.

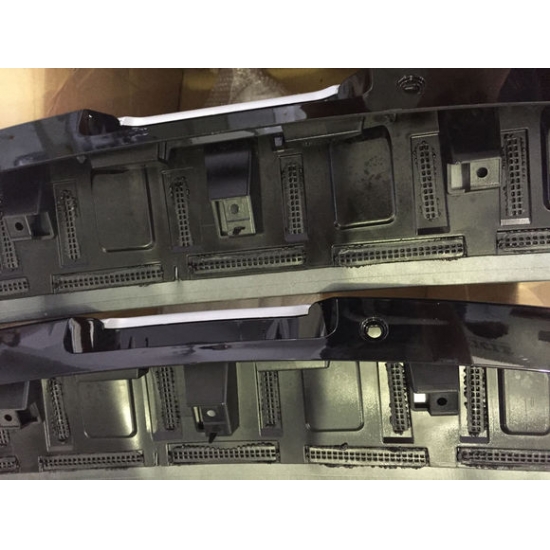

The welding point of ultrasonic puncture welding of the right and left front wheel cover outer plate assembly of the auto can be a circle, some can be square, the design according to the welding point.


How to use ultrasonic puncture welding technology?


It was decided by product material, best of same material, or a mixture of materials and other materials. It depends on whether the ultrasonic wave of two kinds material can be fused. You can send the material to try to test.

How to design ultrasonic puncture welding?


Usually it is up and down welding. The characteristics of puncture welding, there will certainly be a scar on one side, the other side may not be seen if thickness. Many customers are concerned about material issues and also they care about how to design. Here we share the actual ultrasonic puncture welding cases. There are some differences in the products of different ultrasonic puncture welding. The content is for reference only.



Specifications:


Model HS-40 HS-35 HS-30 HS-28 HS-20
Frequency 40khz 35khz 30khz 28khz 20khz
Power 500W 500~800w 500~800w 500~800w 500~1000w
Horn ≤10mm ≤10mm ≤10mm ≤12mm ≤13mm
Housing Diameter 44mm 44mm 44mm 44mm 64mm
Weight of Welder 1.0kg 1.0kg 1.0kg 1.0kg 1.5kg

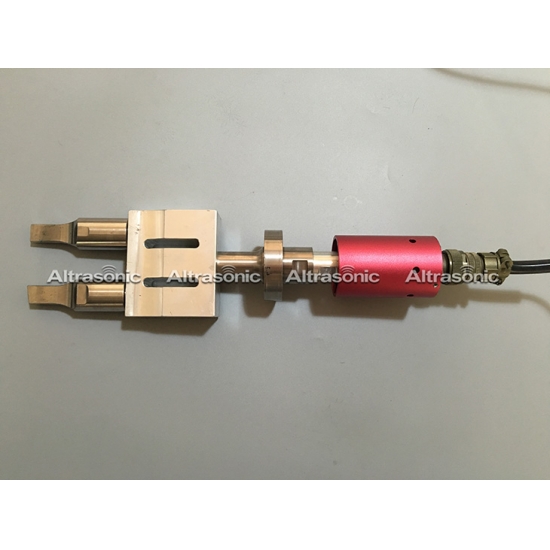

Gun and Cylinder Type of Horn



Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.

Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.



Advantages and Disadvantages of Ultrasonic in Auto Industry.



Advantages:

1. application in riveting, forming and welding

2. light weight, easy to take, easy to operate (handheld)

3. Equipped with welding timer

4. Easty to set time welding

5. Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)

6. FET power output

7. Automatic resonance

8. Maintain the amplitude function automatically

9. Starting: achieving maximum power with 105msec



Disadvantages:


Limitation of measure, shape and material.(ultrasonic welding for PP, PC, ABS, PA, PS, AMMA plastic).
