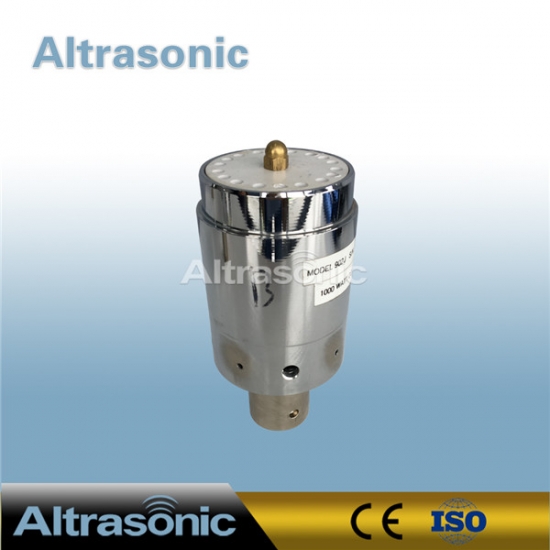

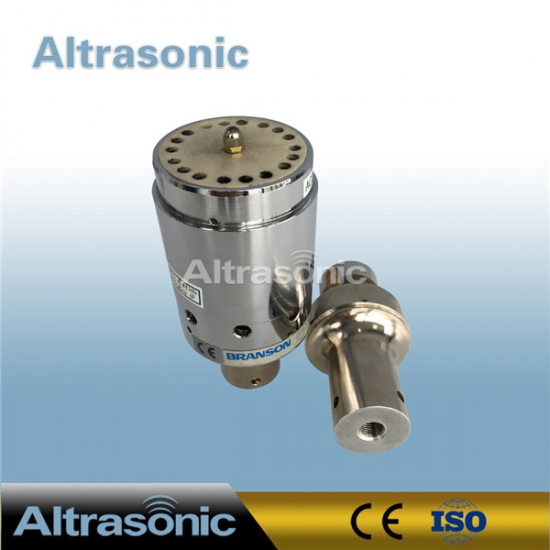

902J Converter Titanium Alloy Material Without SUS Housing for Branson 20khz 900 Series Ultrasonic Welder

Specifications:

Model HSB902
Frequency 20 khz
Output power 1100 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 40 mm
Quantity of Ceramic discs 4 pcs
Capacitance Different item No., with different capacitance
Amplitude 20 um
Application welding machine



Description:

The Replacement Converter for Branson 902

Direct replacement for the 20khz Branson machine.

You tell us the brand item No, and we can make it for you according to the brand items' No. or the original samples.

The housing can be custom - made according to your special requirements.

First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and

tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance tha2t duplicates the OEM part.

Warranty:

We offer the same warranty as the OEM, namely, three years one-time replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).



Applied Range:

Replacement ultrasonic converter for Branson model, for use with 20KHz welding machine.


Competitive Advantage:

1. Titanium materials and Aluminum materials optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



What we can do for you,

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

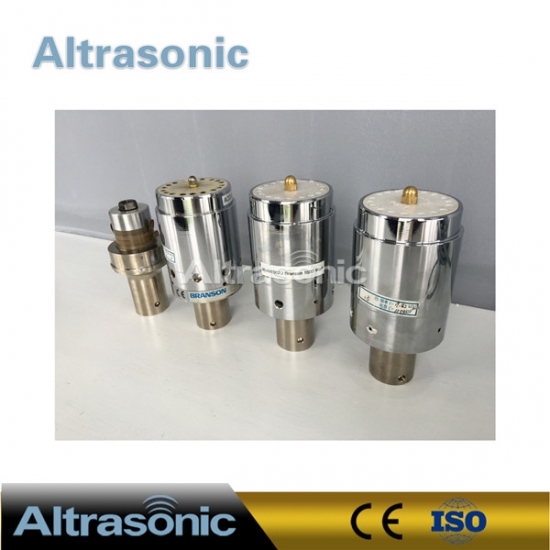

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
