70Khz New Ultrasonic Technology for RFID Producing All Kinds of Cotact IC Memory Card

  • China
  • Altrasonic
  • HSD70S
  • Shanghai
  • 1
  • 100% TT, West Union, Paypal
  • $5000/台

  • Contact Now
Product Details

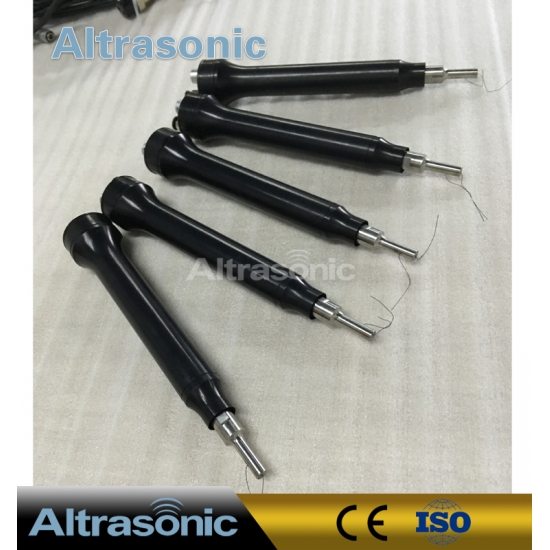

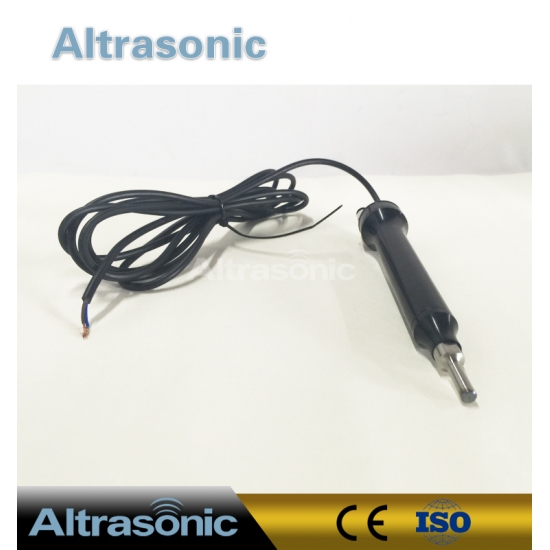

 70Khz New Ultrasonic Technology for RFID Producing All Kinds of Cotact IC Memory Card

Description:

Radio frequency identification (RFID) inlays are manufactured throughout the world for many purposes: biometric passports, the contactless smart card market (e-ID, electronic healthcare cards, payment cards, public transportation), and for dual interface applications. At the same time, wire-embedded high frequency (HF) RFID antennas are available and offer a number of advantages over printed, etched, or galvanized variations.



Parameters:


Frequency

70khz

Power

500w

Power Adjusting

Step or continuous

Switch

Handle , foot switch,or linked outside

Working Time control

0-999seconds

Generator

Digital generator

Cable

2M,  national standard

The threading hole

Ø0.5m or design according to customers' need

Cooling down method

Compressed air

Outer housing

aluminium or nylon



Components and Parts

Generator

Booster

Converter

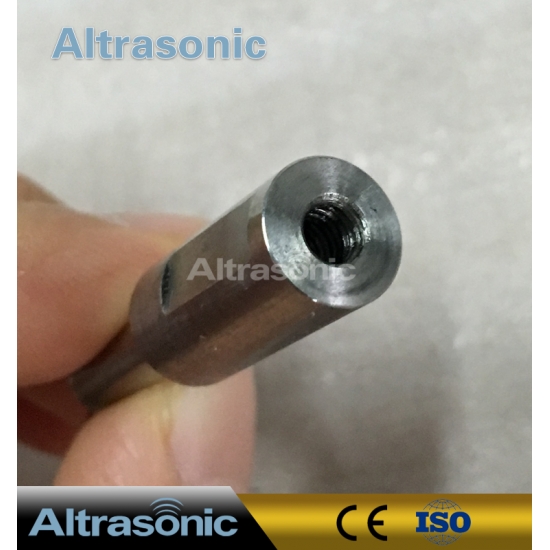

Welding Horn

Protective Sleeve (Nylon and Aluminum optional)

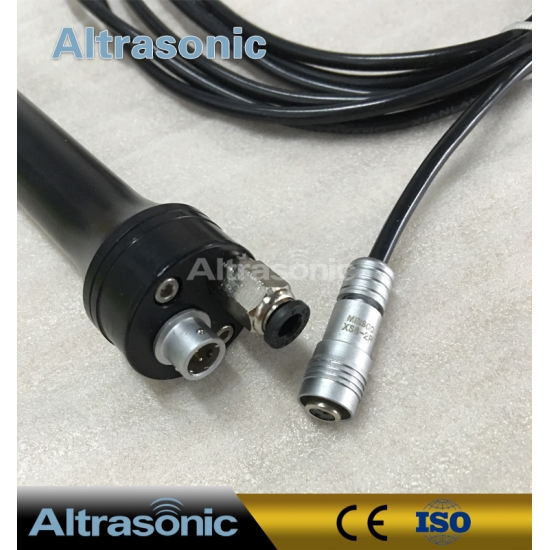

HF Cable

Power Cable



Development and functional characteristics of ultrasonic Embedding line machine

The application and popularization of ultrasonic embedding wire machine in the smart card industry have been more than 20 years of history. Due to being loved and favored by many manufacturers, it has been rapidly developed and improved since it was put into operation. From the beginning of the single head winding, to the current 4/5 head / 8 simultaneous winding; from the previous single-processing platen operation to the current two sets of processing platen automatic cycle switching, winding speed from the previous 100 coils / hour to the current 2000 coil / hour or more.

The existing ultrasonic embedding wire embossing machine basically adopts a professional motion controller with a high-speed CPU to ensure the high-speed response of complicated mechanical actions and complete complex multi-axis motion control so as to realize the precision embedding of complex products. The vacuum suction plate Absorbing material embedding, effectively ensure the accuracy of the antenna embedding a smooth; embedding thread buried by ultrasonic technology, the entire process of program control fully automatic operation, easy operation, stable and reliable operation; using two automatic cycle switching workbench Plate, refueling without downtime, high production efficiency; each group of buried wire antenna group are independent units, both at the same time, you can also choose one of the groups at the same time work, high flexibility. Winding process than the traditional winding machine to be fast, save manpower, and more stable performance.



What Is an RFID Inlay?

Radio-frequency identification, or RFID, technology provides identifying information about a person or an object, much like barcode technology does. The RFID inlay -- which can be as small as a grain of rice -- is the functional part of an RFID tag's label that encodes the identifying information. The RFID inlay uses radio frequency waves to relay information to a computer system via an RFID reader.

Components

The RFID inlay consists of two components. An integrated circuit or microchip that stores personal identifying information attaches to a small coil of aluminum, copper or silver wires called the antenna, which transmits and receives radio frequency signals. The microchip and antenna are then placed on a label, and the entire unit is encased in plastic.

How It Works

Data from the microchip passes to the RFID tag's antenna, where it is read by the antenna of an RFID reader and passed onto a host computer system for archival purposes, processing or analysis.

Types

RFID inlays are classified as "wet" or "dry." RFID inlays are considered "wet" if an adhesive is applied to the inlay to adhere it to a pressure-sensitive liner that comprises the label. Inlays are considered "dry" when the inlay is attached to the label without the use of an adhesive.

PreviousReplacement Traditional Winding Process by Full Automatic Ultrasonic Embedding Device

Next60/70 Khz Ultrasonic Welding Equipment For Smart Card
