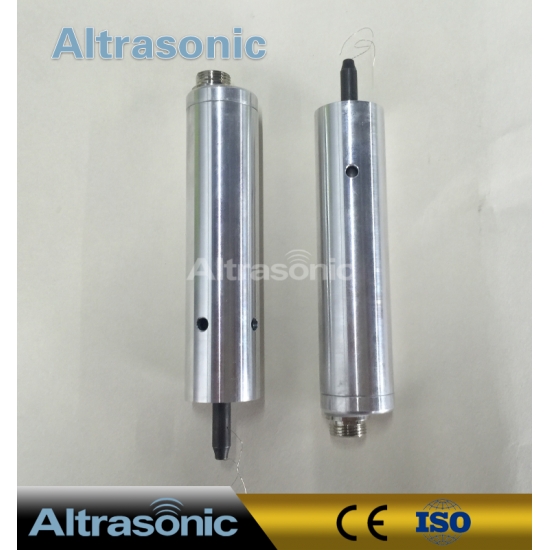

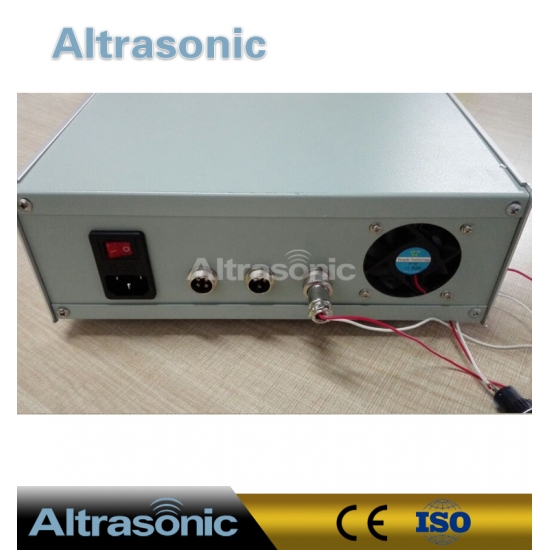

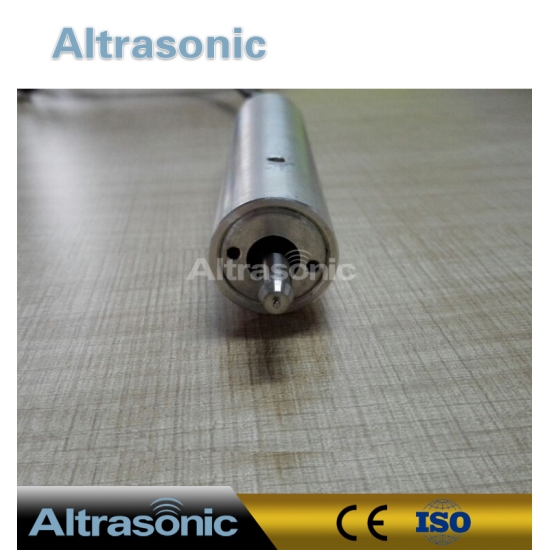

60Khz Ultrasonic Smart Card Welding Machine to Weld the Wire and Chips on the Thin Plastic Plate

  • China
  • Altrasonic
  • HSD60
  • Shanghai
  • Silver
  • 1
  • 100% TT, West union, Paypal
  • $1500/piece
  • $2000

  • Contact Now
Product Details

60Khz Ultrasonic Smart Card Welding Machine to Weld the Wire and Chips on the Thin Plastic Plate



Specification:



Special instructions

1The product from the factory date within the next 12 months , our warranty is responsible for matters relating to the period of free maintenance and after -sale technical service.

2Other matters beyond warranty repair services , our company paid to provide.

3The following are not cases of the warranty matters

  • change due to natural disasters, accidents and becomes the damage occurred.

  • The equipment damage during use under abnormal circumstances.

  • privately transformation equipment , damage during maintenance.





Description:

During the past half year, with many effort from the research development section of our company, at present we have successfully promote the intelligent card welding equipment substantially. After promotion, comparison with the former one, the properties of the equipment has been promoted highly, more stability, better in search the frequency at more wide range, and much better appearance. On the process using the former 60K equipment, with the damage of the welding horn, the frequency would be altered.(the frequency is decided by the size of the product).When the frequency is altered to a certain degree, the ultrasonic generator would be difficult to coincide with the frequency, then influencing to the normal running of all the ultrasonic system



Function: Ultrasonic smart-card welding machine, high-speed production specifically for contactless smart card, double circles cards, bank cards, and is a key component to improve production efficiency, mainly applies to:

(1)Smart-card metal wire, chip implants, it means welding the wires and chips on the thin plastic plate.

2Smart Card PVC welding between thin cardboard.

3Spot welding of thin plastic, etc.



Competitive Advantage:



★ Steady welding point, completely eradicate insufficient solder technically.

★ The size of welding spots is the same, equality line, good effect on uniformity.

★ The welding spot is small, wouldn’t increase the weight of the coil, easy to do lamination and encapsulation.

★ To leave out the immersion tin step before doing welding, save an operator.

★ After skilled in welding, much faster than the way to use searing iron to do weld.

★ On the process on manufactory, there is no waste gas, waste rubbish on pollution, runs in quiet and no noise.

★ To select the frequency 60KHz, one machine could drive 5-10 ultrasonic products, the speed to do welding is much faster.

★ Low power consumption, to save production cost for manufactory enterprise.







Previous70Khz High Frequency Ultrasonic Wire Embedding Antennas Machine

Next60/70 Khz Ultrasonic Welding Equipment For Smart Card
