Ultrasonic smart card welding equipment transmitted ultrasonic energy through welding parts to welding area, local high temperature will happen due to high acoustic resistance between two welding interface places.
Product origin:

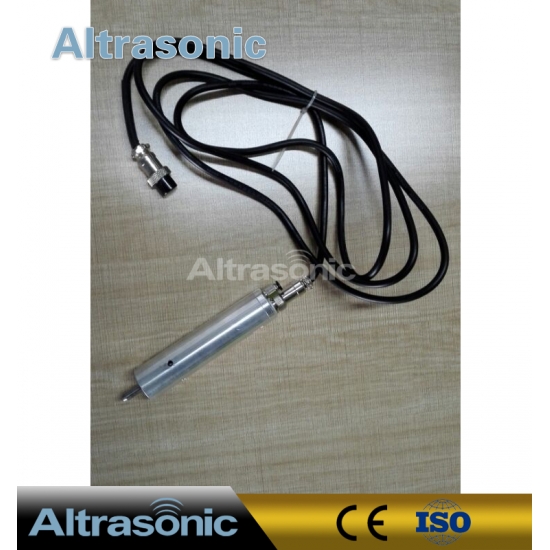

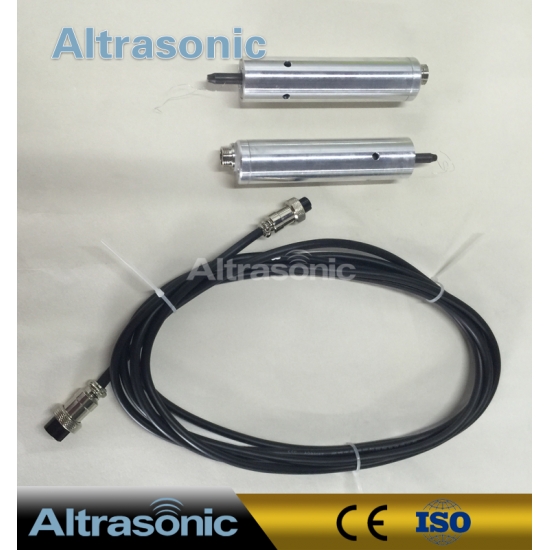

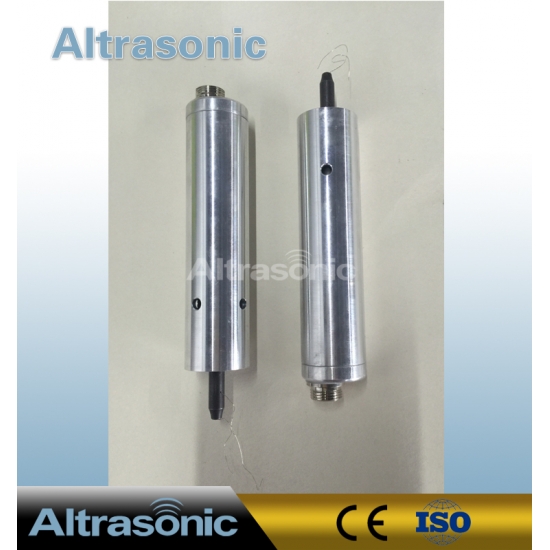

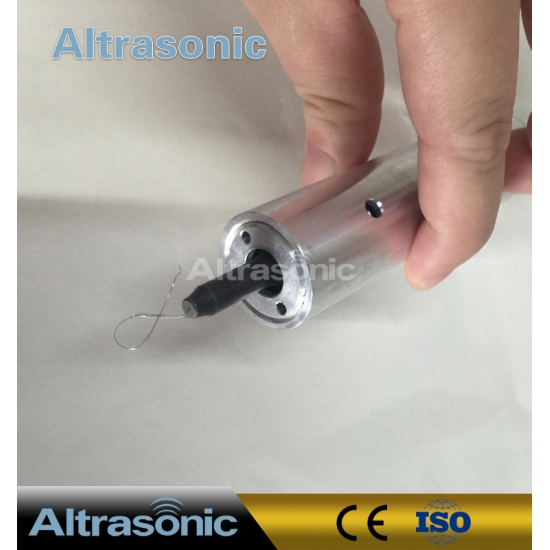

China60Khz Ultrasonic Smart Card Metal Wire Welding Machine High Speed Production
Brief Introduction:
Ultrasonic smart card welding equipment transmitted ultrasonic energy through welding parts to welding area, local high temperature will happen due to high acoustic resistance between two welding interface places. Also, no enough time dissipating out heating energy timely because of poor plastic thermal conductivity, heating energy gathered in welding area since could not dissipating out timely, the two plastic contact areas will welt rapidly, coupled with a certain pressure, it makes fusion to one unite. When ultrasonic stop function, and keep the pressure sustain to make its solidification molding, finally forming a strong molecular chain, which achieve the purpose of welding. And the welding strength can close to raw material body strength.
Parameters:
Frequency |
60khz |
Power |
500w |
Power Adjusting |
Step or continuous |
Switch |
Handle , foot switch,or linked outside |
Working Time control |
0-999seconds |
Generator |
Digital generator |
Cable |
2M, national standard |
The threading hole |
Ø0.5m or design according to customers' need |
Cooling down method |
Compressed air |
Outer housing |
aluminium or nylon |
Components and Parts
Generator
Booster
Converter
Welding Horn
Protective Sleeve (Nylon and Aluminum optional)
HF Cable
Power Cable
Benefits:
1.steady welding point, completely eradicate insufficient solder technically.
2.the size of welding spots is the same, equality line, good effect on uniformity
3.the welding spot is small, wouldn’t increase the weight of the coil, easy to do lamination and encapsulation
4.to leave out the immersion tin step before doing welding ,save an operator.
5. after skilled in welding, much faster than the way to use searing iron to do weld.
6.on the process on manufacturer, there is no waste gas, waste rubbish on pollution, runs in quiet and no noise.
7.to select the the frequency 60KHz, one machine could drive 5-10 ultrasonic products, the speed to do welding is much faster.
8.low power consumption, to save production cost for manufacturer enterprise.
