60/70 Khz Ultrasonic Welding Equipment For Smart Card

Product Details

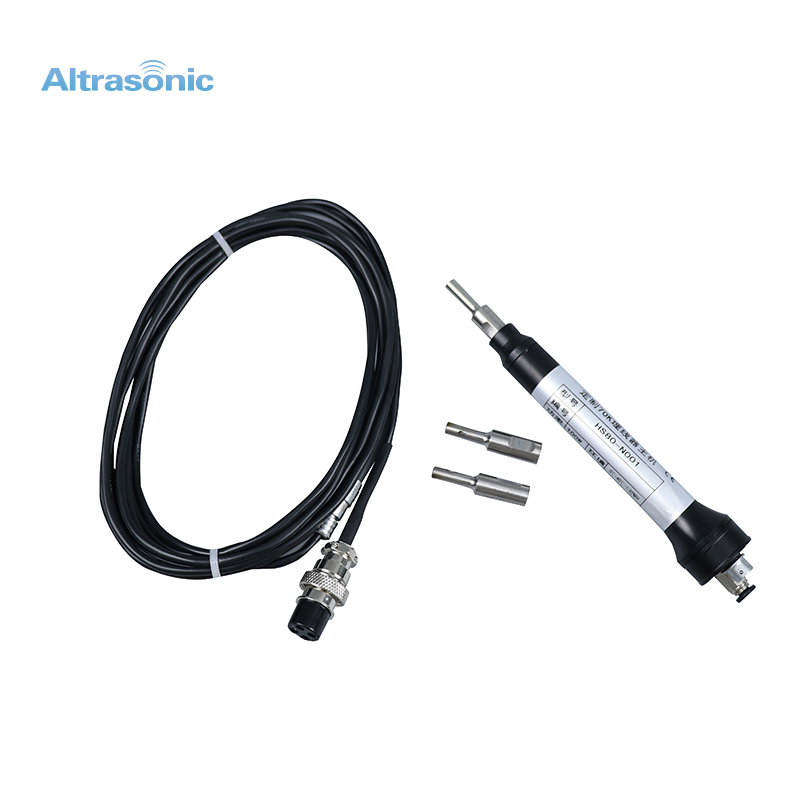

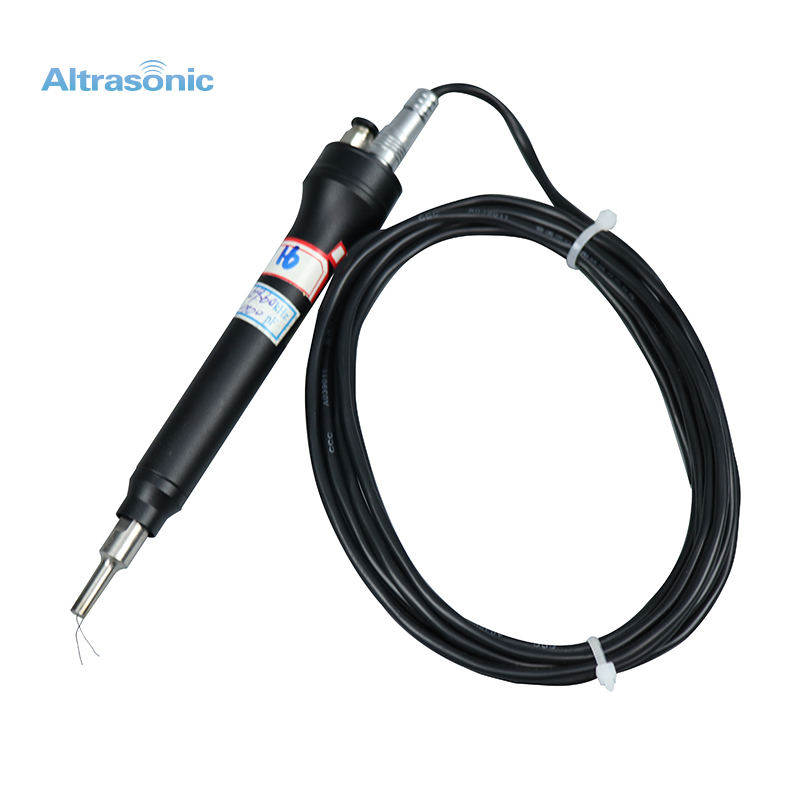

 60/70 Khz Ultrasonic Welding Equipment For Smart Card



Minimum Order Quantity:

1 Set

Price:

Ask for quote

Packaging Details:

Wood case

Delivery Time:

In 7 Working Days

Payment Terms:

T/T, WESTERN UNION

Supply Ability:

2000Sets/Month



Quick Detail:

Steady welding point, completely eradicate insufficient solder
Save labor and cost
Search the frequency automatically







Description:

During the past half year, with many effort from the research development section of our company, at present we have successfully promote the intelligent card welding equipment substantially. After promotion, comparison with the former one, the properties of the equipment has been promoted highly, more stability, better in search the frequency at more wide range, and much better appearance. On the process using the former 60K equipment, with the damage of the welding horn, the frequency would be altered.(the frequency is decided by the size of the product).When the frequency is altered to a certain degree, the ultrasonic generator would be difficult to coincide with the frequency, then influencing to the normal running of all the ultrasonic system.





Applications:

The equipment is used for the coil embedded in a smart card.





Specifications:



Model

W-60

Frequency

60Khz or custom made

Working Mode

PLC or manual

Material of Head

Wear-resisting alloy steel, HRC≥50

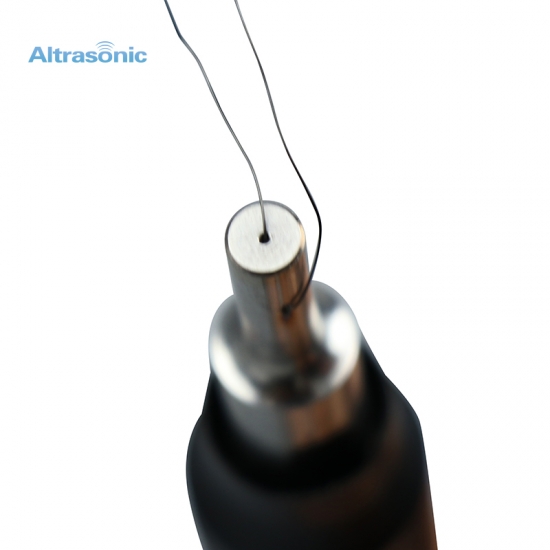

Hole for line

φ0.3 mm, φ0.5 mm or custom made

Cable

2M

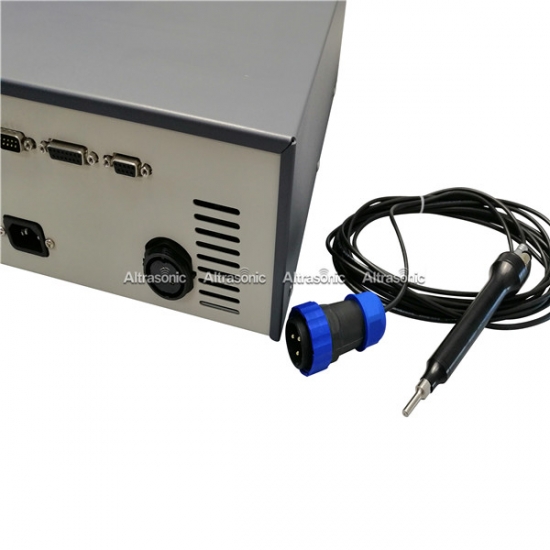

Generator

V1.5

Size of generator

250*250*120 mm

Size of Shell

φ25*100 mm

Material of Shell

Nylon or aluminium

Cooling mode

Compressed air(φ4 mm)





Competitive Advantage:



★ Steady welding point, completely eradicate insufficient solder technically.

★ The size of welding spots is the same, equality line, good effect on uniformity.

★ The welding spot is small, wouldn’t increase the weight of the coil, easy to do lamination and encapsulation.

★ To leave out the immersion tin step before doing welding, save an operator.

★ After skilled in welding, much faster than the way to use searing iron to do weld.

★ On the process on manufactory, there is no waste gas, waste rubbish on pollution, runs in quiet and no noise.

★ To select the frequency 60KHz, one machine could drive 5-10 ultrasonic products, the speed to do welding is much faster.

★ Low power consumption, to save production cost for manufactory enterprise.
