6 Axis Robotic Instrument Platform Welding Machine with PLC control System


Specification:


Frequency 30 Khz
Output Power 1000 W
Voltage AC220V±10V Or AC110V±10V , 50/60HZ
Max Current 15A
Power Adjusting Step or continuous
Horn ≤10mm
Weignt 10-15 KG   ( Determined by the size of the horn )
Generator Digital Generator


Competive Advantages:

  • Application in riveting, forming and welding
  • Light weight, easy to take, easy to operate (handheld)
  • Equipped with welding timer
  • Easty to set time welding
  • Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)
  • FET power output
  • Automatic resonance
  • Maintain the amplitude function automatically
  • Starting: achieving maximum power with 105msec



Principle of Ultrasonic Riveting Welding:


When the ultrasonic role in the thermoplastic plastic contact surface, it will generate tens of thousands of times per second, high frequency vibration, this high-frequency vibration, ultrasonic energy through the ultrasonic wave transmitted to the mold to ultrasonic welding material surface, it will produce high-temperature materials. Plastic contact surface resulting in rapid melting, coupled with stress, it blend and coagulation, so that to achieve the purpose of ultrasonic welding.



Applications In Automobile:

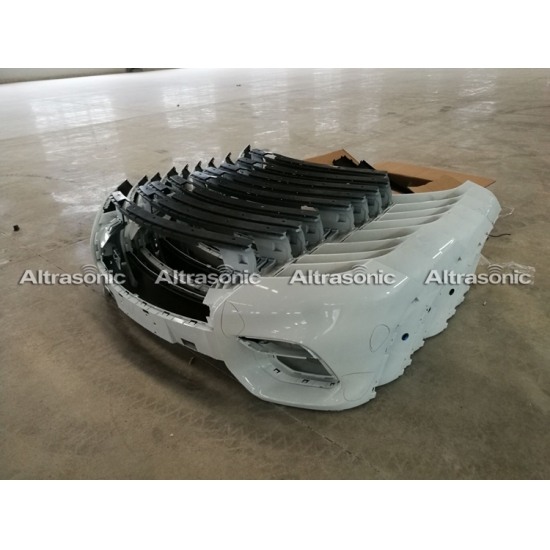

Ultrasonic Riveting Welding is mainly used in automotive interior parts. Ultrasonic spot welding in sound-proof cotton of engine cover, trunk and wheel casing, and hallstand felt. Ultrasonic Riveting Welding can be used in automobile air-conditioning outlet welding, car rear view mirror, car door handles, hand car door and so on.

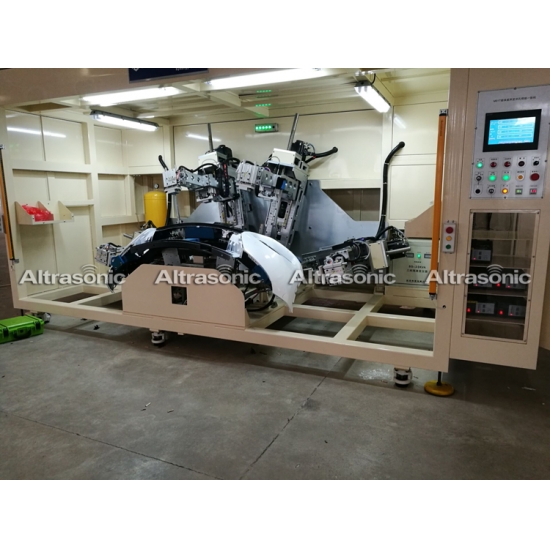

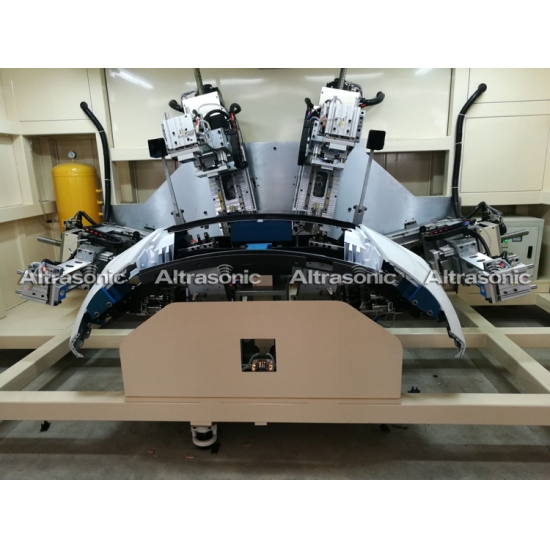

Automotive plastic parts are mostly welded in non-standard ultrasonic welding equipment, long multi-station design, with PCL program control and LCD operation, large automotive complex workpiece welding, including different directions of the welding surface, in multiple locations.
