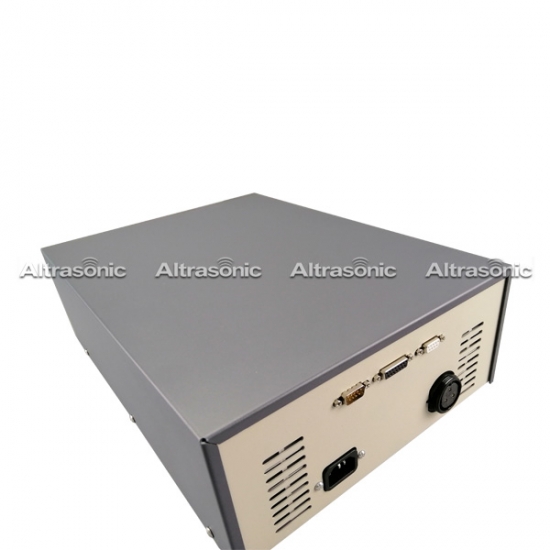

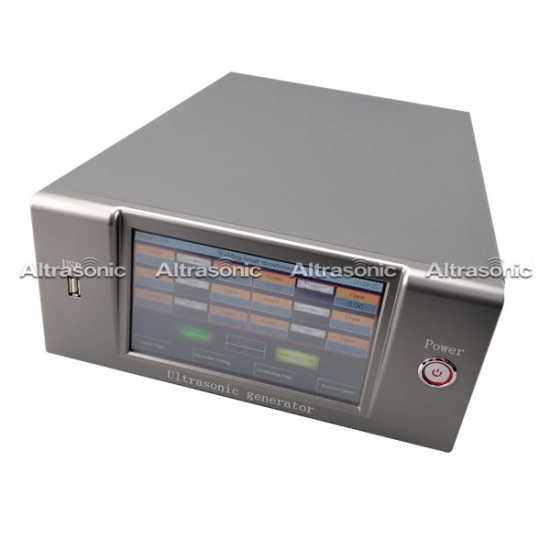

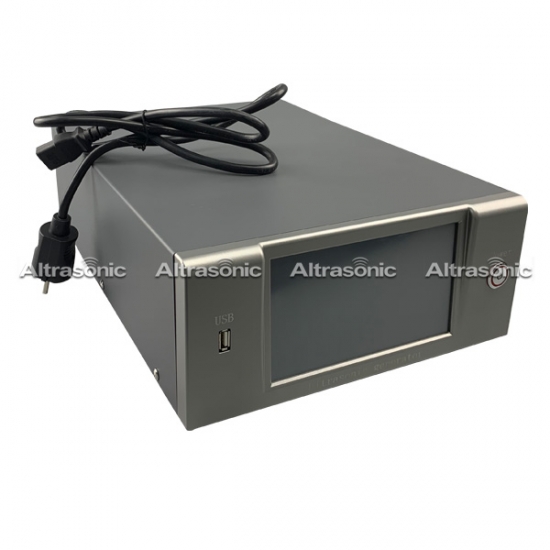

4200W High Intelligent Automatic Tracking Frequency Ultrasonic Generator

Product Details

4200W High Intelligent Automatic Tracking Frequency Ultrasonic Generator



Minimum Order Quantity:

1 Set

Price:

Ask for quote

Packaging Details:

Wood case

Delivery Time:

In 7 Working Days

Payment Terms:

T/T, WESTERN UNION

Supply Ability:

200 Sets/Month






Description:

Domestic first intelligent automatic tracking frequency ultrasonic DG series,

It uses high-performance microprocessor anti-interference,

Realization of electronic manipulation,

All welding control parameters are managed by the microcomputer,

Intelligent frequency control system, eliminating the inconvenience of manual FM,

Sonic overload automatic detection,

Tracking real-optimal resonance point,

Vibration set temperature remains the lowest point,

Frequency welding head temperature changes ,

The machine automatically adjusts to run more stable.



Applications:

Ultrasonic generator main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer.
Ultrasonic generator is applied to all kinds of ultrasonic equipment, mainly with ultrasonic welding, ultrasonic cutting, ultrasonic chemical equipment and ultrasonic welding equipment such as non-woven fabric.







Specifications:


Model

DG-4200

Frequency

15 KHz – 60 KHz

Size

300*450*170 mm

Weight

12 KG

Output Power

100 – 6000 W

Voltage

220 V    50 Hz

Temperature

≤300℃

Moisture

≤85%RH



The same generator is able to run several frequencies, without changing any hardware inside.

Full Digital high power -Ultrasonic generators, Ultrasonic horn, ultrasonic sonotrode, sonotrode, Ultrasonic transducer, Ultrasonic booster, Ultrasonics welding, Ultrasonics welding technology, Ultrasonis cutting, Ultrasonics food slicing, Ultrasonics Food cutting, Ultrasonics Metal Welding, Ultrasonics Sealing, ultrasonics packaging, Food-cutting technologies, ultrasonic plastic processing, ultrasonic sealing technology, Ultrasonic power generator



 Advantages



1. High stability: All-digital integrated circuits, use of US imports of high-performance processors interference, while reducing the number of components, simplify the hardware structure, thereby improving the reliability of the system.

2. Automatic frequency tracking: Digital frequency synthesis technology combined with digital phase-locked loop frequency tracking of complex control technology, can eliminate the temperature, static load, machining area, tool wear and other factors drift disadvantages of conventional analog regulator insurmountable, conducive parameter adjustment, easy modification by software, easily adjust the control scheme and achieve a variety of new control strategies.

3. Strong output: The use of IGBT power modules plus his excited oscillation circuit structure, the output power is more than 1.5 times that of conventional self-excited circuit.

4. Amplitude stepless adjustment: Amplitude can instantly increase or decrease in the adjustment process, also can be micro adjusted, can effectively prevent the perfect size pieces of plastic welding, effectively reducing wear shock, burns and so on. Defective amplitude setting range of 10% to 100%.

5. Intelligent three protection and fault alarm:

Die-current protection, frequency offset protection, total output is too large to protect. Equipment failure, the generator will stop working, and make the appropriate cause of the malfunction prompts until technician troubleshooting.

6. Intelligent closed-loop amplitude control technology to achieve the amplitude adjustment, independent of input supply voltage and load fluctuations affect the amplitude of the output remains constant.

7. Two kinds of welding mode switch back and forth, so that a higher precision welding, soldering and better results.
