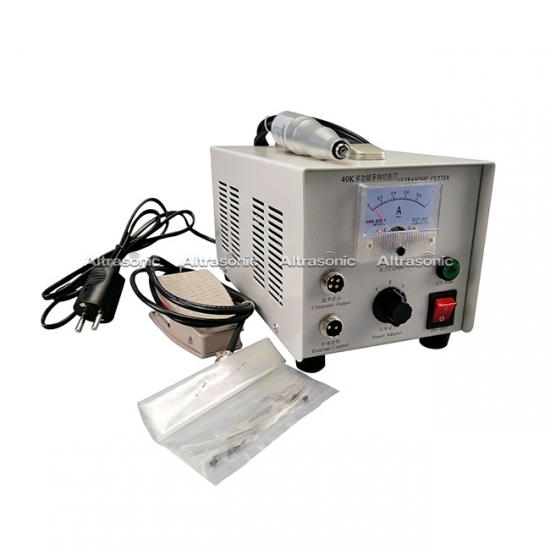

40khz Ultrasonic Cutting Equipment with Repalcebale Blades for Non Woven Fabric

  • China
  • Altrasonic
  • 1

  • Contact Now
Product Details

Specification:



Model

HSQ40B-AB

Frequency

40KHZ

Output Power

100W

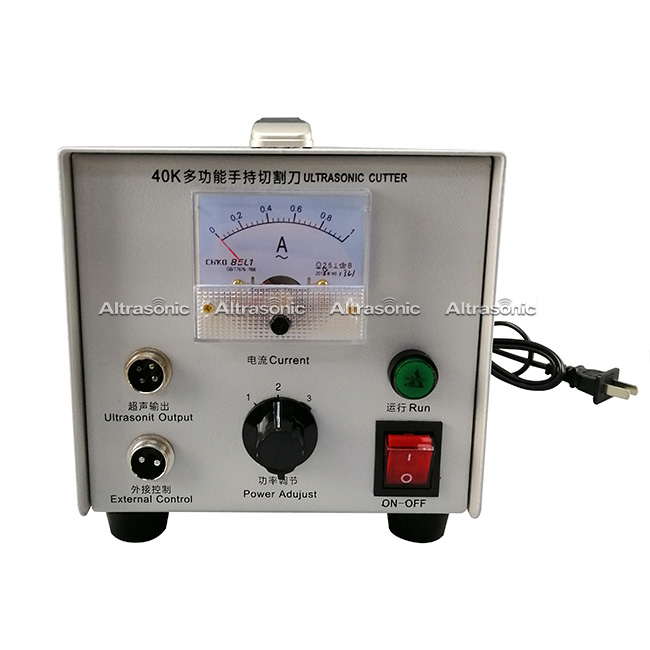

Generator

Analog generator, 155 x 265 x 170mm

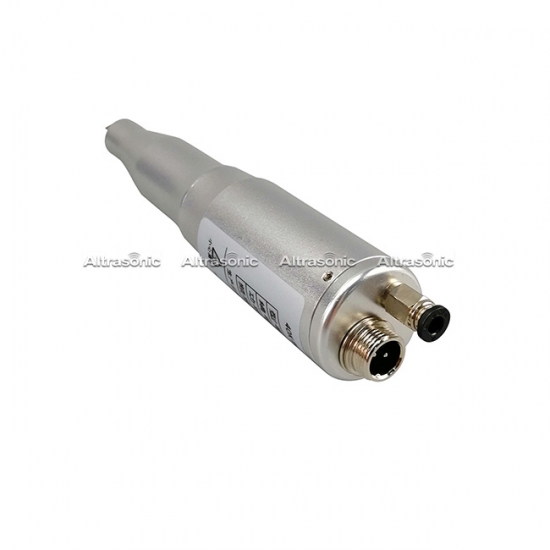

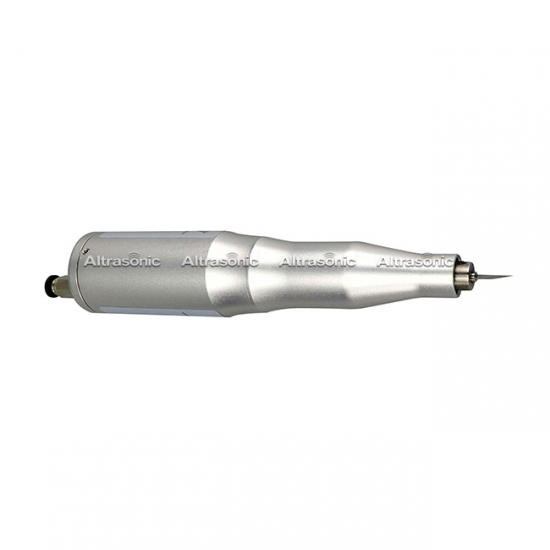

Handle

Φ32×170

Size of cutter

Blade replaceable

Length of cable

3M

Outer skin

Aluminum

Weight

8KG

Voltage

220V / 110V

Accessory

Foot switch1pcCut blade 25pcs1.5mm special hex wrench 1pc
Screw M3×4L 2pcs

Material of cutter

titanium alloy, stainless steel



Description:



Ultrasonic Cutting Machine is a class of device using ultrasonic energy for cutting. Instead of using traditional blade cutting,ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning,wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.
Ultrasonic cutting machine is used for cutting rubber, synthetic fabric, cloth, plastic, sheet metal, food etc.
The cutting of food products using ultrasound is performed when an ultrasonic blade comes into contact with the product to be cut,the high vibration of 40,000 pulses per second, makes this product very easily be cut even if it is of delicate or sticky texture composition.
The much higher vibration does not allow any product to stick to the blade. The cut is clean and without pressure on the product.



Typical materials processed



Aramid Prepreg

Boron Prepreg

Carbon Phenolic Prepreg

Fiberglass Prepreg

Graphite Prepreg

Hybrid Prepreg

Thermoplastic Prepreg

Unidirectional Tape

Aluminum Core Cured/Uncured Rubber

Foam Core Sealant

Nomex Core

Phenolic Core

Woven Fabric

Braided Materials



The difference between traditional cutting and ultrasonic cutting


Ultrasonic cutting machine is the use of wave energy for cutting equipment, the main t feature is not to use the traditional edge.
The traditional cutting utilizes a tool with a sharp edge to press the cutting material. The pressure is concentrated at the edge of the blade, the pressure is very large, more than the shear strength of the cutting material , then the material is cut open. As the material is cut by a strong pressure, so the cutting tool edge should be very sharp and the material itself has to bear the relatively large pressure. Therefore the cutting effect for the soft, flexible material is not good, especially more difficult for sticky material.





Competitive Advantage



Environment-friendly (No noise, no smoke, no air contamination)

Smooth cutting of difficult-to-cut materials

Small hand-held size(can be attached to automotive machinery arms)

No special installation equipment

The use of high power ultrasonic transducer vibrating element, ensure the long time stable working

The cutting speed is improved greatly, the efficiency 10 times higher than the traditional cutting knife.

Cutting all kinds of ordinary tool to cut products, solve production problems

Can be installed high hardness blade, cutting blade can be replaced, greatly reducing the use cost

Cutting tool complete varieties, can also be customized according to customer process shaped cutting tool

Installation, easy to use, almost does not change the original cutting process

Can be used in the production of circular ultrasonic tool cutting equipment, rolling cutting, suitable for cutting special

Can use air-cooling, water-cooling design, adapt to various working conditions and environment
