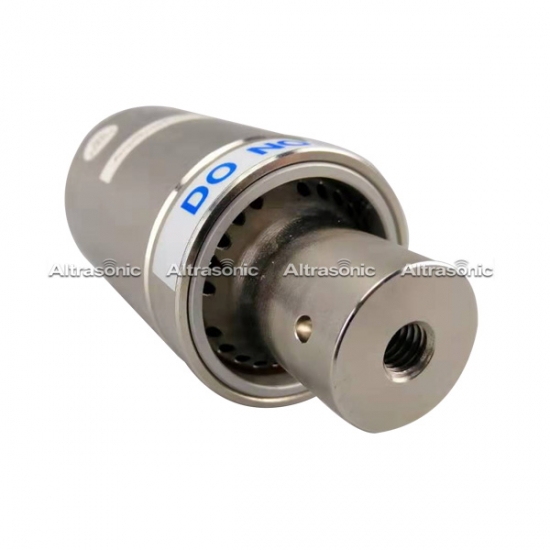

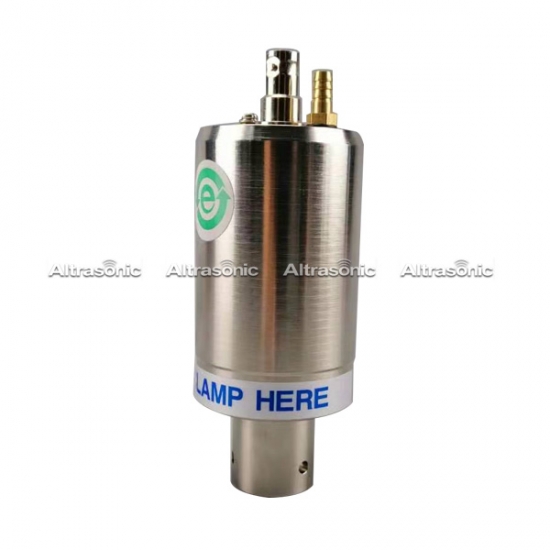

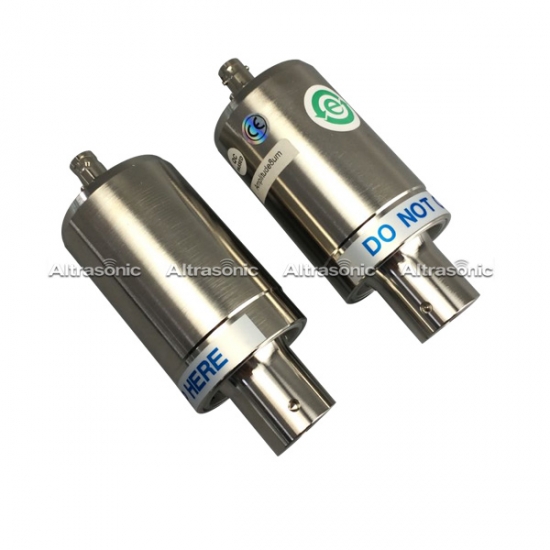

40khz Replacement Branson 4TH Ultrasonic Converter with 4pcs PZT8


Specifications:



Model

HSB4TH

Frequency

40 khz

Output power

500 watt

Joint bolt

M8

Ceramic disc Diameter

25 mm

Quantity of Ceramic discs

4 pcs

Capacitance

4.5 -5.3 nf

Amplitude

6 um

Application

welding machine



Description:

The Replacement Converter for Branson 4TH Direct replacement for the Branson 4TH that
delivers lower cost, rugged quality and superior value.

First, all of the parts are all new.
The parts are made from certified materials in tightly controlled manufacturing processes, assembled and
tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.


Warranty:


We offer the same warranty as the OEM, namely, three years one-time replacement.
Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).

Applied Range:

Replacement ultrasonic converter for Branson model 4TH, for use with 40KHz welding machine.

Competitive Advantage:

1. Titanium materials and Aluminum materials optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.


What we can do for you,


1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
