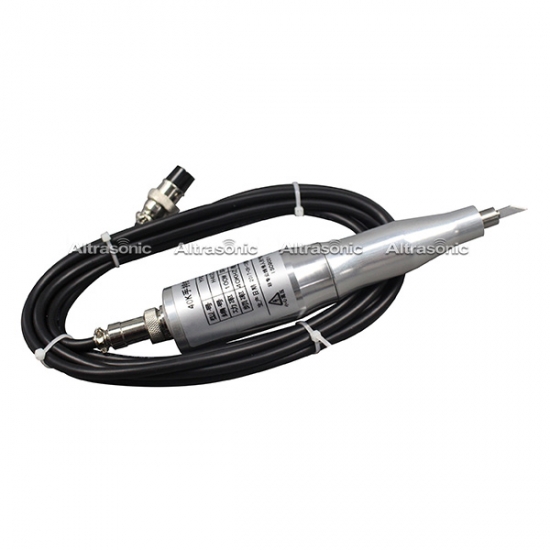

40hkz 100W Portable Ultrasonic Cutter for Non-woven Fabric and Milk Carton Cutting

  • China
  • Altrasonic
  • 1

  • Contact Now
Product Details

Specification:



Model

HSQ40B-AB

Frequency

40KHZ

Output Power

100W

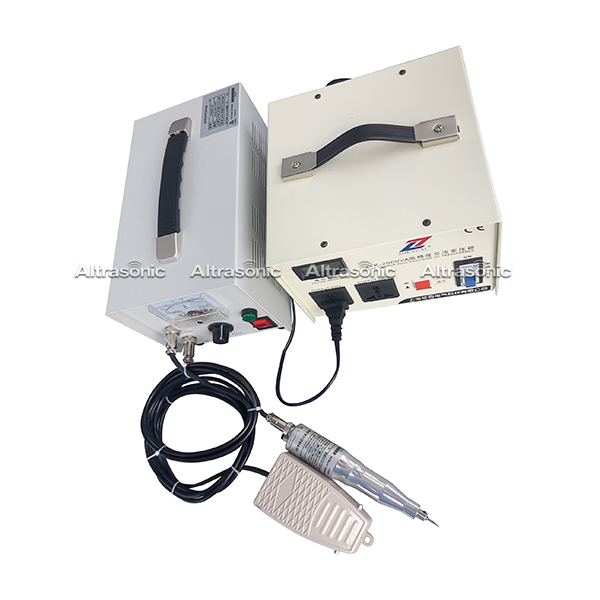

Generator

Analog generator, 155 x 265 x 170mm

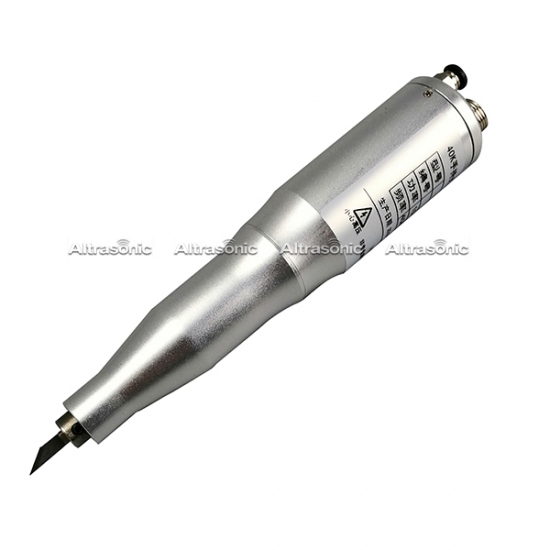

Handle

Φ32×170

Size of cutter

Blade replaceable

Length of cable

3M

Outer skin

Aluminum

Weight

8KG

Voltage

220V / 110V

Accessory

Foot switch1pcCut blade 25pcs1.5mm special hex wrench 1pc
Screw M3×4L 2pcs

Material of cutter

titanium alloy, stainless steel



Description:



Ultrasonic Cutters are designed to cut textiles thermoplastic films, rubber woven and non-woven fabrics. Ultrasonic Cutting Systems can be operated as hand-held units or incorporated into automated machinery Solid, one-piece construction of horn blade virtually eliminates breakage and energy loss. Minimal blade flexure yields straighter cuts without having to support the blade. Available in 20, 30 or 40 kHz frequencies.

Ultrasonic Cutting Machine is a class of device using ultrasonic energy for cutting. Instead of using traditional blade cutting,ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning,wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.
The much higher vibration does not allow any product to stick to the blade. The cut is clean and without pressure on the product.



40K ultrasonic multi-function handheld cutter applies to:

üNatural fibers

üSynthetic fiber

üThin plastic productsSuch as plastic film, cell phone case

üAll types of paper, bottom film

üRubber, silicone

üRepair of printed circuit board copper foil

üABSPPPE other organic plastic sheet less than 2mm

üVarious types of synthetic fabrics



The device features:

Cut fast, accurate, smooth edge of materials





The following table presents the company tests for different material thickness, the recommended cutting speed data.



Cutting Material

Thickness

Cutting speed

ABS/PE

2mm

4mm/s

3mm

2mm/s

4mm

1mm/s

PVC

2mm

15mm/s

Asian gram force

2mm

3mm/s

Non-woven fabric

3mm

2mm/s

Chloroprene rubber

5mm

Easy to cut

Corrugated paper

8mm

Easy to cut

Plywood

2.5mm

Easy to cut

Glass fiber resin

1.5mm

Easy to cut

Thick cardboard

1.5mm

Easy to cut

Linen

2mm

Easy to cut

Urethane

3mm

Easy to cut

Nylon/PP

3mm

Easy to cut
