Home Ultrasonic Cutting Machine

Ultrasonic Plastic & Fabric Cutting Machine

40K Ultrasonic Multi-function Hand-held Cutter Easy for Handling

40K Ultrasonic Multi-function Hand-held Cutter Easy for Handling

Ultrasonic cutting uses ultrasonic energy to slice through objects. The edge of the instrument is blunt in comparison to other cutting methods, and actually creates a fusion effect after cutting an object.

  • Item No.:

    HSC40
  • Product origin:

    China
  • Product Details

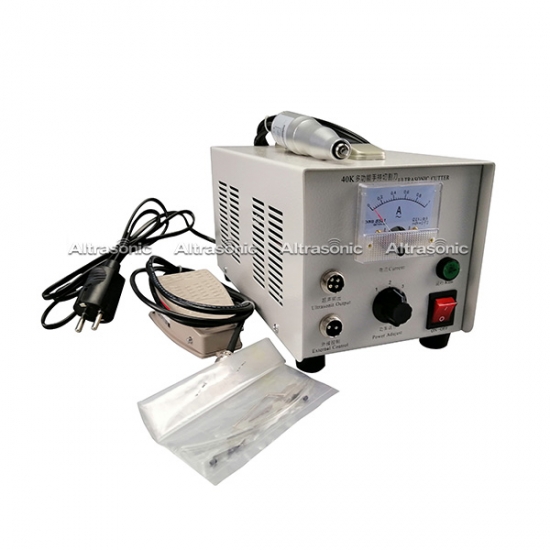

40K Ultrasonic Multi-function Hand-held Cutter Easy for Handling




Description:


Ultrasonic cutting uses ultrasonic energy to slice through objects. The edge of the instrument is blunt in comparison to other cutting methods, and actually creates a fusion effect after cutting an object.

An electric pulse is sent through the cutter, creating microscopic vibrations in the blade. These vibrations are so small they cannot be seen or felt. The energy from the vibrations slices through an object with very little pressure required.



Specification:


Model HSQ40B-AB
Frequency 40KHZ
Output Power 100W
Generator Analog generator, 155 x 265 x 170mm

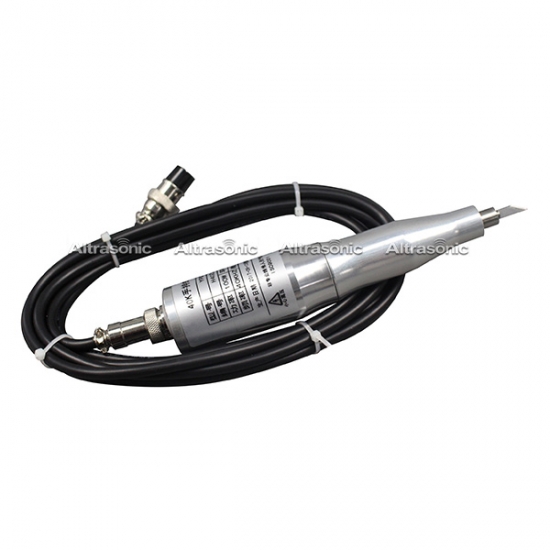

Handle Φ32×170

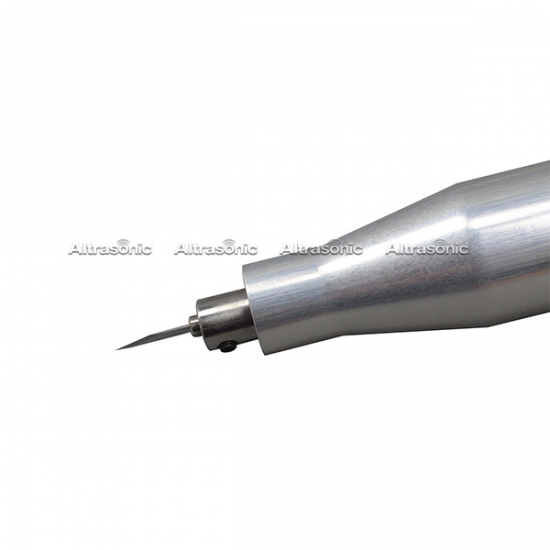

Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V
Accessory Foot switch1pc;Cut blade 25pcs;1.5mm special hex wrench 1pc;
Screw M3×4L 2pcs
Material of cutter titanium alloy, stainless steel



Application:


Natural fibers

Synthetic fiber

Thin plastic productsSuch as plastic film, mobile phone shell

All types of paper, base film

Rubber, silicone

Repair of printed circuit board copper foil

ABSPPPE ( thickness less than 2mm)

Various types of chemical fabrics



Why choose Altrasonic:


1. OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Hongkong, Singapore, Taiwan, Malaysia,  Germany, and other country still being discussing.

2. Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.

3. Half the price, double the value. Every product reach you have been test in our company three times, and with 72 hours continuously working, to confirm it is well before you get it. Also we always learn from foreign company, to upgrade our products.

4. Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.

5. Individual Customize. We can customize products according to your requirements, Also supply OEM service. Customize ultrasonic solution for different applications.
