Product Details

Description:



Ultrasonic Cutting Machine is a class of device using ultrasonic energy for cutting. Instead of using traditional blade cutting, ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning, wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.

Ultrasonic cutting machine is used for cutting rubber, synthetic fabric, cloth, plastic, sheet metal, food etc.

The cutting of food products using ultrasound is performed when an ultrasonic blade comes into contact with the product to be cut, the high vibration of 40,000 pulses per second, makes this product very easily be cut even if it is of delicate or sticky texture composition. The much higher vibration does not allow any product to stick to the blade. The cut is clean and without pressure on the product.





Specification:



Model

HSPC30

Frequency

30KHZ

Output Power

200W

Generator

Digital generator, 452 x 180 x 100mm

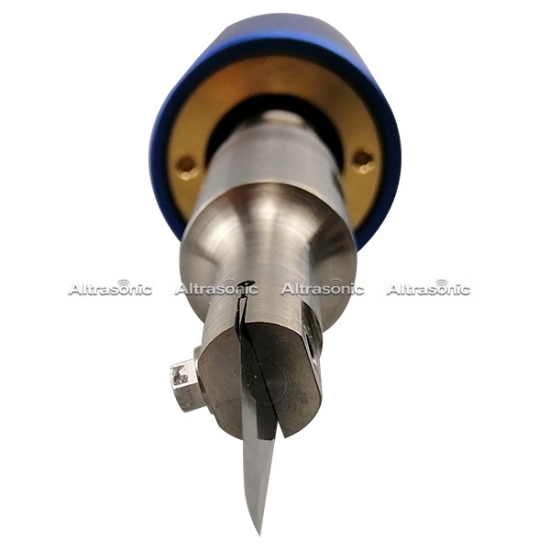

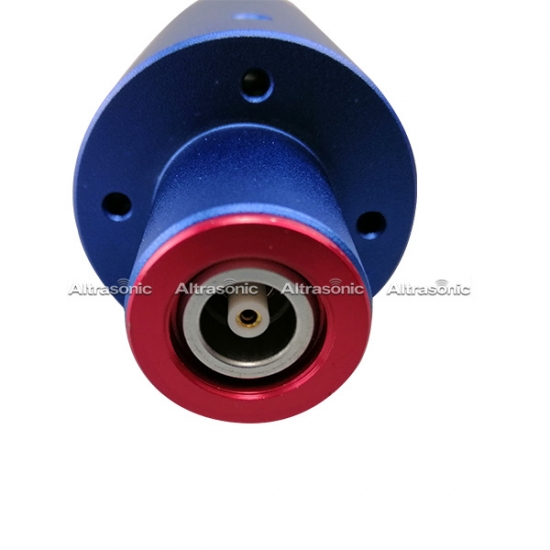

Handle

Φ44×220

Size of cutter

Blade replaceable

Length of cable

3M

Outer skin

Aluminum

Weight

8KG

Voltage

220V / 110V

Accessory

Foot switch 1pcCut blade 2pcs
1.5mm special hex wrench 1pcScrew M3×4L 2pcs

Material of blade

 titanium alloy, stainless steel





Ultrasonic Cutters can cut difficult-to-cut materials

Natural fibers

Synthetic fiber

Thin plastic products(Such as plastic film, cell phone case)

All types of paper, bottom film

Rubber, silicone

Repair of printed circuit board copper foil

ABS,PP,PE … other organic plastic sheet less than 2mm

Various types of synthetic fabricsPlastic sheet




Compared to conventional methods, ultrasonic cutting delivers:



Improved cut quality for carpets, headliners and plastics

Lower initial investment and operating costs

Reduced floor space requirements

A greener footprint with less noise and waste



The following table presents the company tests for different material thickness, the recommended cutting speed data.



Cutting Material

Thickness

Cutting speed

ABS/PE

2mm

4mm/s

3mm

2mm/s

4mm

1mm/s

PVC

2mm

15mm/s

Asian gram force

2mm

3mm/s

Non-woven fabric

3mm

2mm/s

Chloroprene rubber

5mm

Easy to cut

Corrugated paper

8mm

Easy to cut

Plywood

2.5mm

Easy to cut

Glass fiber resin

1.5mm

Easy to cut

Thick cardboard

1.5mm

Easy to cut

Linen

2mm

Easy to cut

Urethane

3mm

Easy to cut

Nylon/PP

3mm

Easy to cut



What we can do for you,

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane  110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
