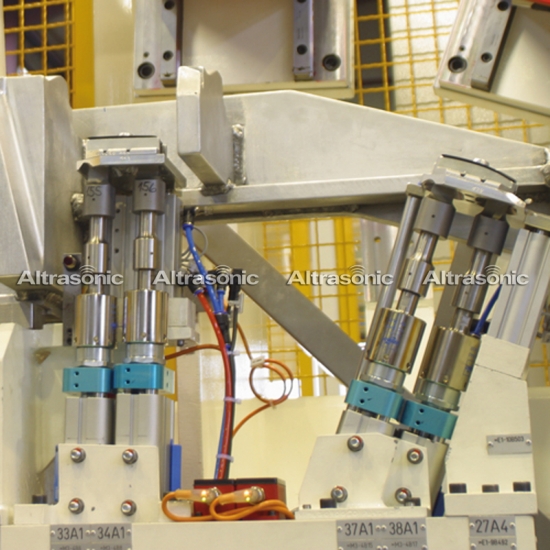

30Khz Robotic Ultrasonic Welding Machine for Welding Automobile Carpet

  • China
  • Altrasonic
  • 1

  • Contact Now
Product Details

30Khz Robotic Ultrasonic Welding Machine for Welding Automobile Carpet


Specification:


Frequency 30 Khz
Output Power 1000 W
Voltage AC220V±10V Or AC110V±10V , 50/60HZ
Max Current 15A
Power Adjusting Step or continuous
Horn ≤10mm
Weignt 10-15 KG   ( Determined by the size of the horn )
Generator Digital Generator

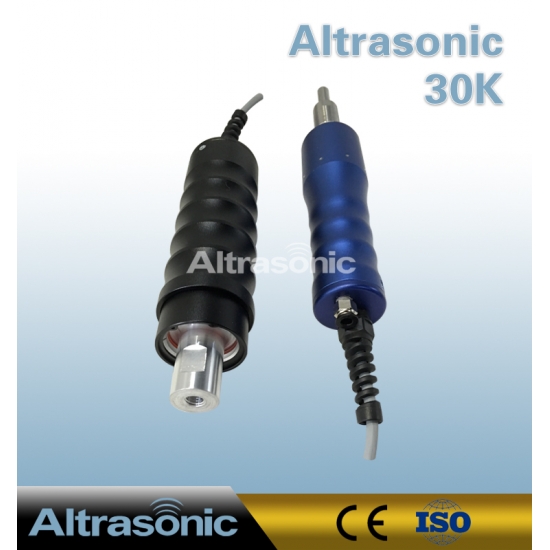

Types of Horn:

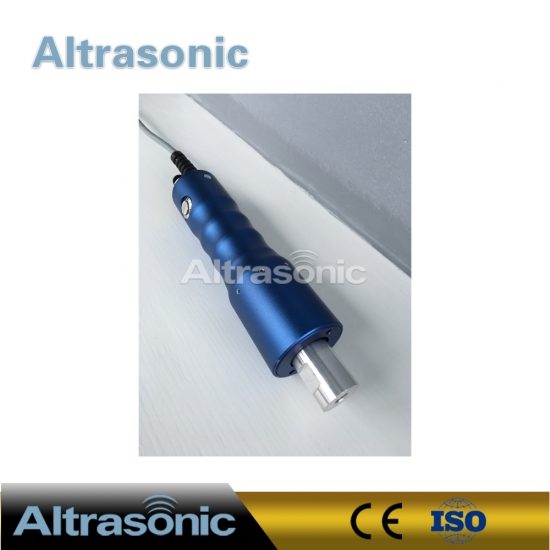

Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.

Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.


Portable Ultrasonic Plastic Riveting Welding  Principle:

When the ultrasonic role in the thermoplastic plastic contact surface, it will generate tens of thousands of times per second, high frequency vibration, this high-frequency vibration, ultrasonic energy through the ultrasonic wave transmitted to the mold to ultrasonic welding material surface, it will produce high-temperature materials. Plastic contact surface resulting in rapid melting, coupled with stress, it blend and coagulation, so that to achieve the purpose of ultrasonic welding.

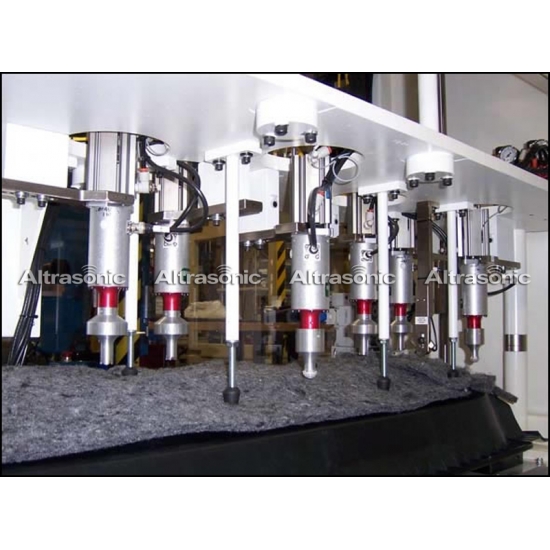

Main Advantage in Auto Carpet Welding:

  • Application in riveting, forming and welding
  • Light weight, easy to take, easy to operate (handheld)
  • Equipped with welding timer
  • Easty to set time welding
  • Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)
  • FET power output
  • Automatic resonance
  • Maintain the amplitude function automatically
  • Starting: achieving maximum power with 105msec
