30Khz Portable Ultrasonic Cutting Machine 200w For Carbon Fiber Film 0.4mm Thickness

  • China
  • Altrasonic
  • 1

  • Contact Now
Product Details



Description:



Ultrasonic cutting system, the main components include ultrasonic generator (drive power), ultrasonic transducer, horn, cutting knife (tool head) and the output lines, control lines. Ultrasonic drive power will be converted into high-frequency high-voltage AC current, lost to the ultrasonic transducer. Ultrasonic transducer is actually equivalent to an energy conversion device, it can enter the input energy into mechanical energy, that is, ultrasonic waves. Its manifestation is the transducer in the longitudinal back and forth telescopic movement. The frequency of the telescopic motion is equivalent to the frequency of the high frequency AC current supplied from the drive power supply. The effect of the horn is to fix the entire ultrasonic vibration system, and the other is to amplify the output amplitude of the transducer. The cutter (tool head) further amplifies the amplitude on one hand, focusing the ultrasound. On the other hand is the output of ultrasonic waves, the use of cutting knife similar to the edge, the ultrasonic energy concentrated input to the cutting material cutting parts. The site in the huge ultrasonic energy under the effect of instant softening, melting, strength greatly reduced. At this point, as long as the application of a small cutting force, you can achieve the purpose of cutting materials.



Specification:

Model

HSPC30

Frequency

30KHZ

Output Power

200W

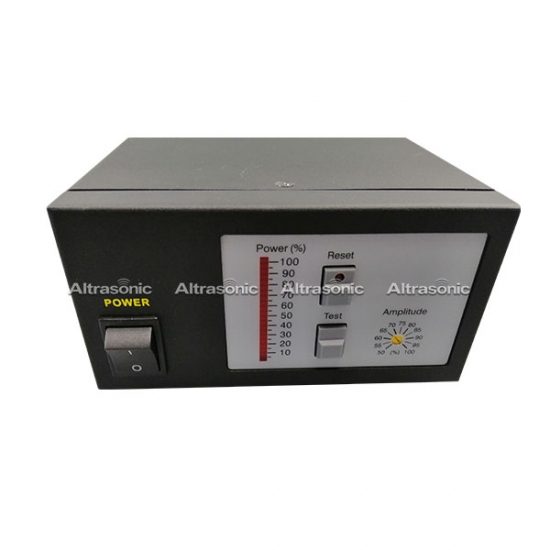

Generator

Digital generator, 452 x 180 x 100mm

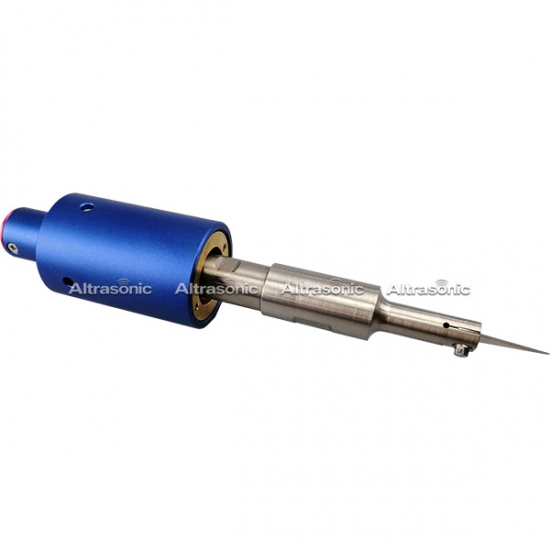

Handle

Φ44×220

Size of cutter

Blade replaceable

Length of cable

3M

Outer skin

Aluminum

Weight

8KG

Voltage

220V / 110V

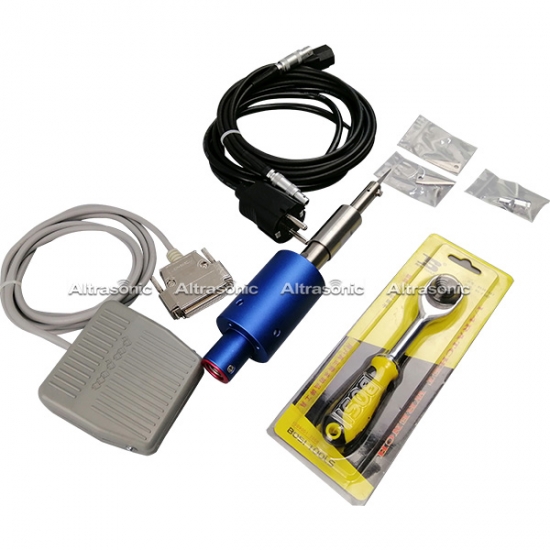

Accessory

Foot switch 1pcCut blade 2pcs
1.5mm special hex wrench 1pcScrew M3×4L 2pcs

Material of blade

 titanium alloy, stainless steel





30K ultrasonic multi-function handheld cutter applies to:

üNatural fibers

üSynthetic fiber

üThin plastic productsSuch as plastic film, cell phone case

üAll types of paper, bottom film

üRubber, silicone

üRepair of printed circuit board copper foil

üABSPPPE … other organic plastic sheet less than 2mm

üVarious types of synthetic fabrics



The device features:

1.No need the sharp knife and large push, no damage of plastic

2. Small frictional resistance, no cutting material stick to the blade

3. Fast cutting speed, save labor cost

4. Safe operating, lower energy consumption, no noise

5. Easy operating ,easy installation



The following table presents the company tests for different material thickness, the recommended cutting speed data.



Cutting Material

Thickness

Cutting speed

ABS/PE

2mm

4mm/s

3mm

2mm/s

4mm

1mm/s

PVC

2mm

15mm/s

Asian gram force

2mm

3mm/s

Non-woven fabric

3mm

2mm/s

Chloroprene rubber

5mm

Easy to cut

Corrugated paper

8mm

Easy to cut

Plywood

2.5mm

Easy to cut

Glass fiber resin

1.5mm

Easy to cut

Thick cardboard

1.5mm

Easy to cut

Linen

2mm

Easy to cut

Urethane

3mm

Easy to cut

Nylon/PP

3mm

Easy to cut
