First, all of the parts are all new.
The parts are made from certified materials in tightly controlled manufacturing processes, assembled and
tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.
Item No.:
HS-D110-3168Payment:
T/T, Paypal, Western UnionPrice:
$788/PCProduct origin:
ChinaColor:
SilverShipping port:
Shanghai or NingboLead Time:
5

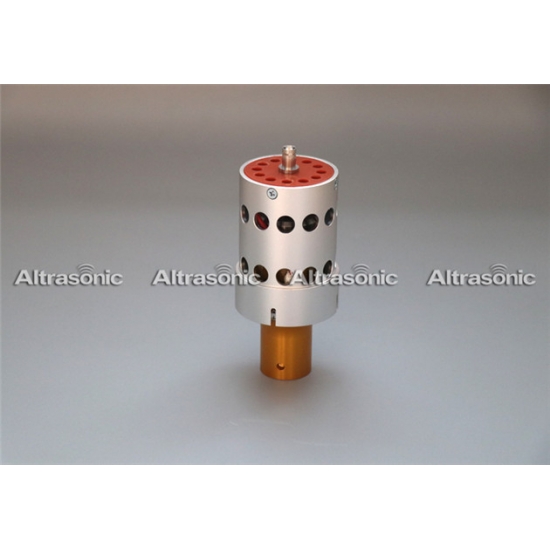

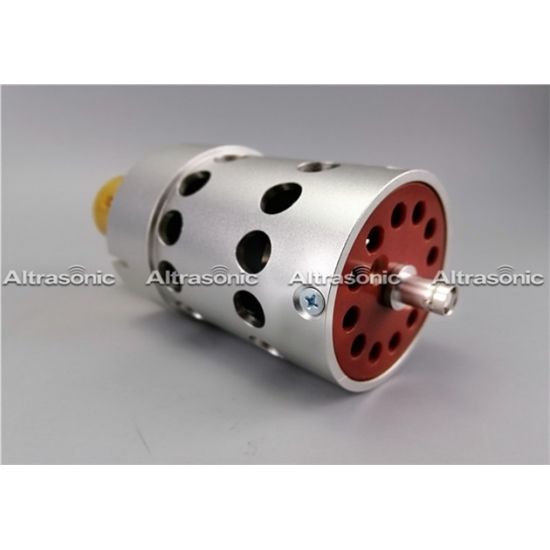

3000W High Power Ultrasonic Replacement Dukane 110-3168 Converter with Golden Valve Body
Specifications:
| Item No.: | HS-110-3168 |
| Frequency: | 20kHz |
| Power: | 800Watt |
| Ceramic Diameter: | 45mm |
| Qty of Ceramic: | 2PCS |
| Resistance: | 10Ω |
| Capacitance: | 4000pF |
| Color of Ceramic: | Yellow |
| Connect Screw: | 1/2-20UNF |
| Weight: | 1.8kgs |
| Package: | Carton |
| Application: | Plastic Welding or Non-woven Fabric |
Description:
Ultrasonic transducer works by converting electrical energy into mechanical energy through the performance of piezoelectric ceramic. Replacement Dukane 41S30 Type Ultrasonic Welding Transducer is specially used for ultrasonic welding machine, which can be used for welding non-woven fabric and thinner thermoplastic material.The transducer used for welding needs to be very strong, so our transducers are made of Imported ceramic discs and superior aluminum raw materials.
Warranty:
We offer the same warranty as the OEM, namely, three years one-time replacement.
Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced
(one time).
Competitive Advantage:
1. Titanium materials and Aluminum materials optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
What we can do for you,
Previous :
20Khz Ultrasonic Replacement Converter with 4 Ceramics Golden Valve for Non Woven WeldingNext :
Looking for Dukane 41S30 Replacement Ultrasonic Converter with Stainless Steel Housing Gloden Valve BodyIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
