28 kHz Ultrasonic Transducer

28khz Heat Resistance Ultrasonic Welding Transducer for Riveting Welding Machine

28khz Heat Resistance Ultrasonic Welding Transducer for Riveting Welding Machine

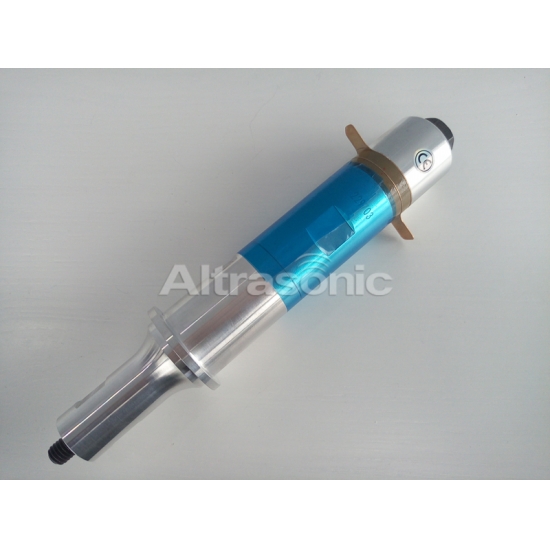

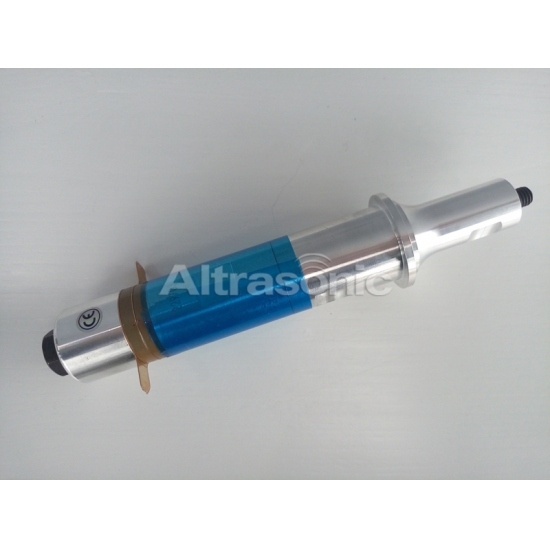

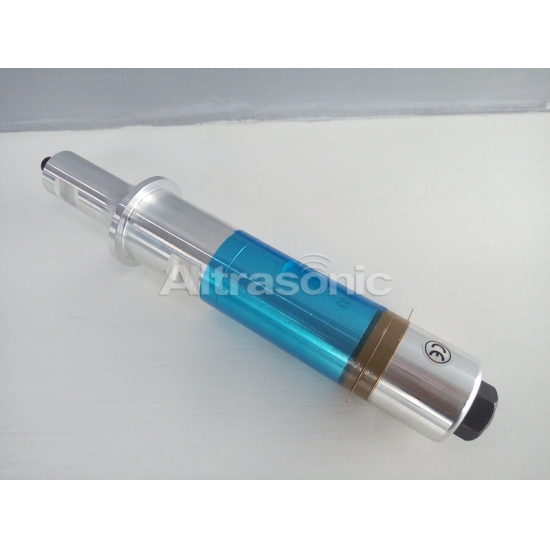

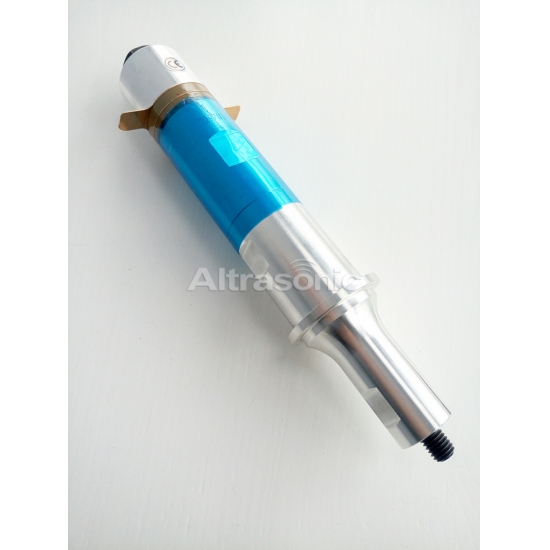

28KHz 400W Ultrasonic Transducer Oscillator Columnar Good Heat Resistance For Welding Machine

  • Item No.:

    HS-3028-2Z
  • Payment:

    TT
  • Market price:

    $280
  • Price:

    $220/piece
  • Product origin:

    China
  • Shipping port:

    Shanghai
  • Product Details

28khz Heat Resistance Ultrasonic Welding Transducer for Riveting Welding Machine

Parameters:

The columnar type NTK TYPE (stabilized power and high reliablity widely application)
Item No. Connect screw (Size) Ceramic diameter (mm) Quantity of Ceramic (pc) Resonance frequency (khz) Resistance (Ω) Capacitance Input power (W) Max. Amplitude (um)
            Yellow Grey Black
7015-4Z M20 X 1.5 70 4 15 15 12500-14000 / 17000-19000 2600 10
6015-4Z M20 X 1.5 or M16 X 1 60 4 15 15 8000-10000 10000-12000 12500-13500 2200 10
6015-6Z M20 X 1.5 60 6 15 15 14000-16000 / 19500-21000 2600 10
5015-4Z M18 X 1.5 50 4 15 15 12000-13000 13000-14300 15000-17000 1500 8
4015-4Z M16 X 1 40 4 15 15 10000-11000 10500-11500   700 8
5520-4Z M18 X 1 55 4 20 15 10000-11000 10500-11500 14300-20000 2000 8
5020-6Z M18 X 1.5 50 6 20 15 18500-20000 / 22500-25000 2000 8
5020-4Z M18 X 1.5 50 4 20 15 11000-13000 13000-15000 15000-17000 1500 8
5020-2Z M18 X 1.5 50 2 20 20 6000-6500 6500-7000 8000-9000 800 6
4020-4Z 1/2-20UNF 40 4 20 15 9000-10000 9500-11000 / 900 6
4020-2Z 1/2-20UNF 40 2 20 25 / 4800-5500 / 500 5
5025-2Z M12 X 1 50 2 25 25 5000-5600 / 7000-8000 500 4
3828-2Z 1/2-20UNF 38 2 28 30 3800-4300 / / 500 3
3828-4Z 1/2-20UNF 38 4 28 30 7600-8500 / 10500-12000 800 4
3028-2Z 3/8-24UNF 30 2 28 30 2700-3100 3400-3800 / 400 3
2528-4Z M8 X 1 25 4 28 30 3900-4300 / / 400 4
2528-2Z M8 X 1 or 3/8-24UNF 25 2 28 35 1950-2200 2200-2500 / 300 3
3030-4Z M10 30 4 30 30 / 6200-6900 / 700 4
3035-2Z 3/8-24UNF 30 2 35 40 2700-3100 / / 500 2
3035-4Z M10 X 1 30 4 35 30 5000-6200 / / 800 3
2535-2Z M8 X 1 25 2 35 40 1900-2200 / / 400 2
2540-2Z 3/8-24UNF 25 2 40 40 / 2000-2300 / 500 2
3040-4Z M10 30 4 40 30 5500-6200 / / 1000 2
3050-4Z M8 30 4 50 30 5500-6200 / / 600 2
1560-2Z M6 X 0.75 15 2 60 60 / / 700-800 100 1
1070-2Z M4 10 2 70 200 / / 350-400 100 1
The upside-down trumpet type BRANSON TYPE (Larger amplitude and bigger output power, high-sound intensity and high-power density application)
Item No. Connect screw (Size) Ceramic diameter (mm) Quantity of Ceramic (pc) Resonance frequency (khz) Resistance (Ω) Capacitance Input power (W) Max. Amplitude (um)
            Yellow Grey Black
7015-4D M20 X 1.5 70 4 15 15 12500-14000 / 17000-19000 2600 11
6015-4D M18 X 1.5 60 4 15 15 9000-10000 10000-11000 / 2200 11
6015-6D 1/2-20UNF 60 6 15 15 19000-20500 / 23000-25000 2600 11
5015-6D 1/2-20UNF 50 6 15 15 17000-19000 / 23000-25000 2000 11
5020- 4DS 1/2-20UNF 50 4 20 15 11000-12000 12000-13500 / 1300 8
5020-4D 1/2-20UNF 50 4 20 15 11000-12000 12000-13500 14500-16000 1500 8
5020-6D 1/2-20UNF 50 6 20 15 19000-21000 / 22500-25000 2000 10
4020-6D 1/2-20UNF 40 6 20 15 13500-15000 / / 1500 10
4020-4D 1/2-20UNF 40 4 20 15 8500-9300/ 9500-10500 10000-11000 10500-11500 900 8
3020-6D 3/8-24UNF 30 6 20 15 8000-9000 / / 600 9
3030-4D M8 or M8 X 1 30 4 30 20 / 6200-6900 / 800 5
3535-2D M8 X 1 35 2 35 25 / / 4500-5000 600 9
3535-4D M8 X 1 35 4 35 20 6600-7400 / 9000-10000 1000 4
3035-4D 1/2-20UNF 30 4 35 20 5500-6200 / 9200-10200 800 4
2535-4D M8 25 4 35 25 3900-4300 / / 500 4
3040-2D M8 30 2 40 30 / 3400-3800 / 500 2
2540-4D M8 25 4 40 30 4500-5300 / / 500 3
2040-2D M8 20 2 40 40 1100-1300 1150-1350 / 300 2

PS:we can also customize depend on your requirements.



Description:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Applications:



Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.

Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.

The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.



Competitive Advantage:



1. Imported ceramic discs and superior aluminum raw materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

related products
3828-2Z 28KHz Ultrasonic Transducer Stabilized High Power For Plastic Welding
3828-2Z 28KHz Ultrasonic Transducer Stabilized High Power For Plastic Welding

3828-2Z 28KHz Ultrasonic Transducer Stabilized High Power For Plastic Welding

3828-4Z Transducer For Ultrasonic Plastic Sealing Mmachine
3828-4Z Transducer For Ultrasonic Plastic Sealing Mmachine

3828-4Z Transducer For Ultrasonic Plastic Sealing Mmachine

3028-2Z 28Khz Ultrasonic Transducer For Spot Welder
3028-2Z 28Khz Ultrasonic Transducer For Spot Welder

3028-2Z 28Khz Ultrasonic Transducer For Spot Welder

2528-4Z M8 Connected Ultrasonic Welding Transducer
2528-4Z M8 Connected Ultrasonic Welding Transducer

2528-4Z M8 Connected Ultrasonic Welding Transducer

2528-2Z Ultrasonic Welding Transducer For Evergreen Welder
2528-2Z Ultrasonic Welding Transducer For Evergreen Welder

2528-2Z Ultrasonic Welding Transducer For Evergreen Welder

Ultrasonic Converter
28kHz 30mm Ceramic Diameter High Power Ultrasonic Transducer

An ultrasonic transducer itself is a device that is capable of generating and receiving ultrasonic vibrations.

28Khz NTK Type Ultrasonic Converter
28Khz High Output Ultrasonic Converter For Ultrasonic Polishing / Laminating Machine

High Output  NTK Type Ultrasonic Converter 28Khz 800W For Ultrasonic Polishing / Laminating Machine

400W Ultrasonic Converter 28KHz for Welding Cutting with 30mm Diameter Import Piezoelectric Ceramic
400W Ultrasonic Converter 28KHz for Welding Cutting with 30mm Diameter Import Piezoelectric Ceramic

400W Ultrasonic Converter  for Welding Cutting with 30mm Diameter
