28Khz Transducer of Ultrasonic Welding Machine for PP Folder Welding

  • China
  • Altrasonic
  • HS-3028-2Z
  • Shanghai
  • 1
  • TT
  • $220/piece
  • $280

  • Contact Now
Product Details

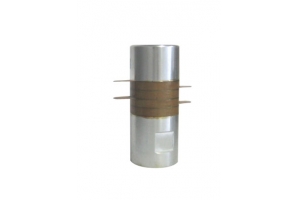

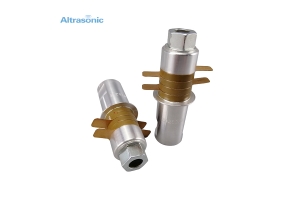

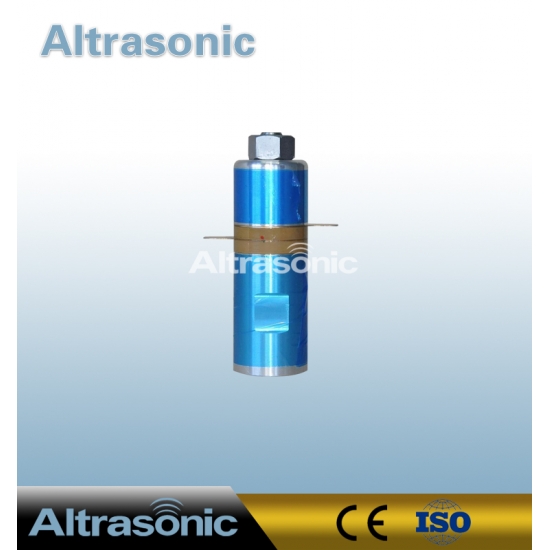

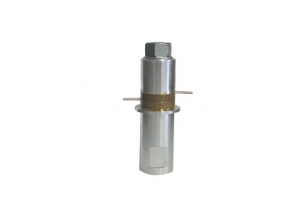

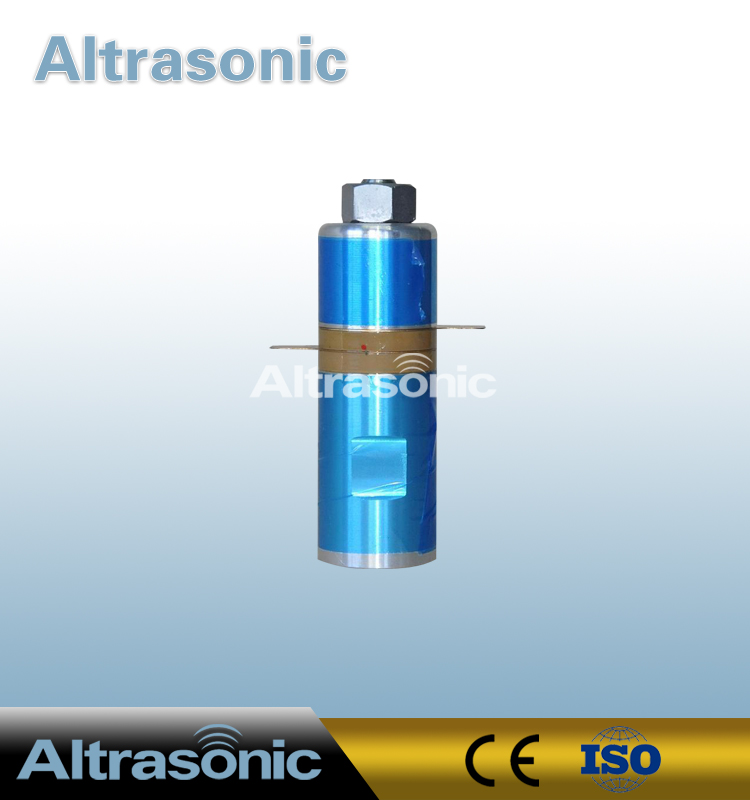

28Khz Transducer of Ultrasonic Welding Machine for PP Folder Welding

Description:

Ultrasonic transducer is a device that converts electrical energy into mechanical energy. The most mature and reliable device is a device that converts electrical energy to sound energy with the effect of piezoelectric. It is called a piezoelectric transducer. This type of transducer produces a stable ultrasonic wave when the load changes.

ultrasonic transducer


Parameters:

The columnar type NTK TYPE (stabilized power and high reliablity widely application)
Item No. Connect screw (Size) Ceramic diameter (mm) Quantity of Ceramic (pc) Resonance frequency (khz) Resistance (Ω) Capacitance Input power (W) Max. Amplitude (um)
            Yellow Grey Black
7015-4Z M20 X 1.5 70 4 15 15 12500-14000 / 17000-19000 2600 10
6015-4Z M20 X 1.5 or M16 X 1 60 4 15 15 8000-10000 10000-12000 12500-13500 2200 10
6015-6Z M20 X 1.5 60 6 15 15 14000-16000 / 19500-21000 2600 10
5015-4Z M18 X 1.5 50 4 15 15 12000-13000 13000-14300 15000-17000 1500 8
4015-4Z M16 X 1 40 4 15 15 10000-11000 10500-11500   700 8
5520-4Z M18 X 1 55 4 20 15 10000-11000 10500-11500 14300-20000 2000 8
5020-6Z M18 X 1.5 50 6 20 15 18500-20000 / 22500-25000 2000 8
5020-4Z M18 X 1.5 50 4 20 15 11000-13000 13000-15000 15000-17000 1500 8
5020-2Z M18 X 1.5 50 2 20 20 6000-6500 6500-7000 8000-9000 800 6
4020-4Z 1/2-20UNF 40 4 20 15 9000-10000 9500-11000 / 900 6
4020-2Z 1/2-20UNF 40 2 20 25 / 4800-5500 / 500 5
5025-2Z M12 X 1 50 2 25 25 5000-5600 / 7000-8000 500 4
3828-2Z 1/2-20UNF 38 2 28 30 3800-4300 / / 500 3
3828-4Z 1/2-20UNF 38 4 28 30 7600-8500 / 10500-12000 800 4
3028-2Z 3/8-24UNF 30 2 28 30 2700-3100 3400-3800 / 400 3
2528-4Z M8 X 1 25 4 28 30 3900-4300 / / 400 4
2528-2Z M8 X 1 or 3/8-24UNF 25 2 28 35 1950-2200 2200-2500 / 300 3
3030-4Z M10 30 4 30 30 / 6200-6900 / 700 4
3035-2Z 3/8-24UNF 30 2 35 40 2700-3100 / / 500 2
3035-4Z M10 X 1 30 4 35 30 5000-6200 / / 800 3
2535-2Z M8 X 1 25 2 35 40 1900-2200 / / 400 2
2540-2Z 3/8-24UNF 25 2 40 40 / 2000-2300 / 500 2
3040-4Z M10 30 4 40 30 5500-6200 / / 1000 2
3050-4Z M8 30 4 50 30 5500-6200 / / 600 2
1560-2Z M6 X 0.75 15 2 60 60 / / 700-800 100 1
1070-2Z M4 10 2 70 200 / / 350-400 100 1
The upside-down trumpet type BRANSON TYPE (Larger amplitude and bigger output power, high-sound intensity and high-power density application)
Item No. Connect screw (Size) Ceramic diameter (mm) Quantity of Ceramic (pc) Resonance frequency (khz) Resistance (Ω) Capacitance Input power (W) Max. Amplitude (um)
            Yellow Grey Black
7015-4D M20 X 1.5 70 4 15 15 12500-14000 / 17000-19000 2600 11
6015-4D M18 X 1.5 60 4 15 15 9000-10000 10000-11000 / 2200 11
6015-6D 1/2-20UNF 60 6 15 15 19000-20500 / 23000-25000 2600 11
5015-6D 1/2-20UNF 50 6 15 15 17000-19000 / 23000-25000 2000 11
5020- 4DS 1/2-20UNF 50 4 20 15 11000-12000 12000-13500 / 1300 8
5020-4D 1/2-20UNF 50 4 20 15 11000-12000 12000-13500 14500-16000 1500 8
5020-6D 1/2-20UNF 50 6 20 15 19000-21000 / 22500-25000 2000 10
4020-6D 1/2-20UNF 40 6 20 15 13500-15000 / / 1500 10
4020-4D 1/2-20UNF 40 4 20 15 8500-9300/ 9500-10500 10000-11000 10500-11500 900 8
3020-6D 3/8-24UNF 30 6 20 15 8000-9000 / / 600 9
3030-4D M8 or M8 X 1 30 4 30 20 / 6200-6900 / 800 5
3535-2D M8 X 1 35 2 35 25 / / 4500-5000 600 9
3535-4D M8 X 1 35 4 35 20 6600-7400 / 9000-10000 1000 4
3035-4D 1/2-20UNF 30 4 35 20 5500-6200 / 9200-10200 800 4
2535-4D M8 25 4 35 25 3900-4300 / / 500 4
3040-2D M8 30 2 40 30 / 3400-3800 / 500 2
2540-4D M8 25 4 40 30 4500-5300 / / 500 3
2040-2D M8 20 2 40 40 1100-1300 1150-1350 / 300 2

PS:we can also customize depend on your requirements.



Applications:



Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.

Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.

The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.



Competitive Advantage:

1. Titanium materials and Aluminum materials optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
