2600w High Power 15Khz Ultrasonic Piezoelectric Transducer for Ultrasonic Welding Machine

  • China
  • Altrasonic
  • HS-7015-4Z
  • Shanghai
  • 1
  • TT
  • $220/Piece
  • $280

  • Contact Now
Product Details

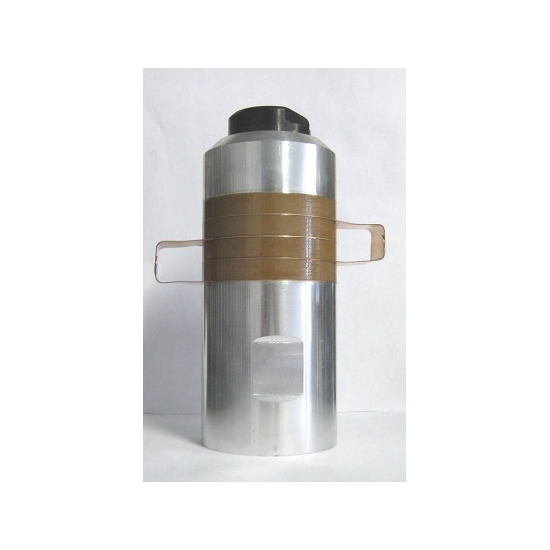

2600w High Power 15Khz Ultrasonic Piezoelectric Transducer for Ultrasonic Welding Machine

Specifications:



Model HS-7015-4Z
Frequency 15Khz
Output power 2600W
Joint bolt M20*1.5
Ceramic disc Diameter 70 mm
Quantity of Ceramic discs 4 pcs
Capacitance 12.5~14nf
Amplitude 10um
Application Welding

Quick Detail:

Stabilized power and high reliability widely application







 NTK Type Ultrasonic transducer Main features:
Firstly:Mechanical quality, high efficiency, high in the resonant frequency factor some work can gain the highest electro-acoustic conversion efficiency.
Second, amplitude big: via computer optimization design of structure, vibration amplitude ratio is high, front cover.
Three, large power: in prestressed screw, under the action of piezoelectric ceramic energy get maximum play.
Four, heat-resistant good: resonant impedance small, discusses the small, use temperature range. High reliability life long.



Specifications:

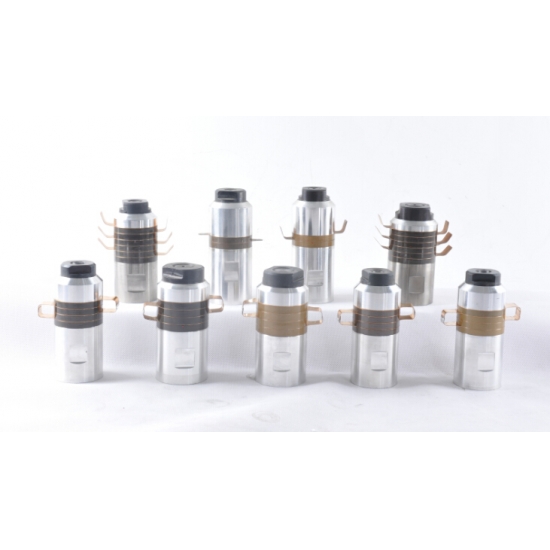

 The columnar type NTK TYPE (stabilized power and high reliablity widely application)

Item No.

Connect screw (Size)

Ceramic

diameter (mm)

Quantity of

Ceramic (pc)

Resonance

frequency (khz)



Resistance (Ω)

Capacitance

Input power (W)

Max.

 Amplitude (um)













Yellow

Grey

Black





7015-4Z

M20 X 1.5

70

4

15

15

12500-14000

/

17000-19000

2600

10

6015-4Z

M20 X 1.5 or M16 X 1

60

4

15

15

8000-10000

10000-12000

12500-13500

2200

10

6015-6Z

M20 X 1.5

60

6

15

15

14000-16000

/

19500-21000

2600

10

5015-4Z

M18 X 1.5

50

4

15

15

12000-13000

13000-14300

15000-17000

1500

8

4015-4Z

M16 X 1

40

4

15

15

10000-11000

10500-11500



700

8

5520-4Z

M18 X 1

55

4

20

15

10000-11000

10500-11500

14300-20000

2000

8

5020-6Z

M18 X 1.5

50

6

20

15

18500-20000

/

22500-25000

2000

8

5020-4Z

M18 X 1.5

50

4

20

15

11000-13000

13000-15000

15000-17000

1500

8

5020-2Z

M18 X 1.5

50

2

20

20

6000-6500

6500-7000

8000-9000

800

6

4020-4Z

1/2-20UNF

40

4

20

15

9000-10000

9500-11000

/

900

6

4020-2Z

1/2-20UNF

40

2

20

25

/

4800-5500

/

500

5

5025-2Z

M12 X 1

50

2

25

25

5000-5600

/

7000-8000

500

4

3828-2Z

1/2-20UNF

38

2

28

30

3800-4300

/

/

500

3

3828-4Z

1/2-20UNF

38

4

28

30

7600-8500

/

10500-12000

800

4

3028-2Z

3/8-24UNF

30

2

28

30

2700-3100

3400-3800

/

400

3

2528-4Z

M8 X 1

25

4

28

30

3900-4300

/

/

400

4

2528-2Z

M8 X 1 or 3/8-24UNF

25

2

28

35

1950-2200

2200-2500

/

300

3

3030-4Z

M10

30

4

30

30

/

6200-6900

/

700

4

3035-2Z

3/8-24UNF

30

2

35

40

2700-3100

/

/

500

2

3035-4Z

M10 X 1

30

4

35

30

5000-6200

/

/

800

3

2535-2Z

M8 X 1

25

2

35

40

1900-2200

/

/

400

2

2540-2Z

3/8-24UNF

25

2

40

40

/

2000-2300

/

500

2

3040-4Z

M10

30

4

40

30

5500-6200

/

/

1000

2

3050-4Z

M8

30

4

50

30

5500-6200

/

/

600

2

1560-2Z

M6 X 0.75

15

2

60

60

/

/

700-800

100

1

1070-2Z

M4

10

2

70

200

/

/

350-400

100

1

  PSwe can also customize depend on your requirements.



Competitive Advantage:

Higher power

More stable

Longer use life

Imported ceramic chip
