Home Ultrasonic Welder Repair Dukane

Dukane Type Converter

20Khz Ultrasonic Replacement Converter with 4 Ceramics Golden Valve for Non Woven Welding

20Khz Ultrasonic Replacement Converter with 4 Ceramics Golden Valve for Non Woven Welding

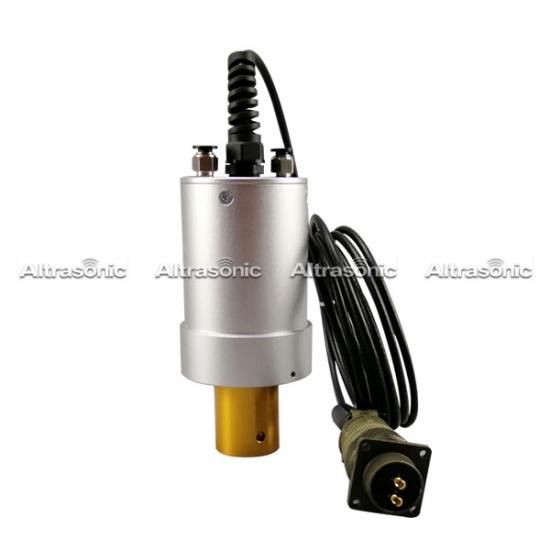

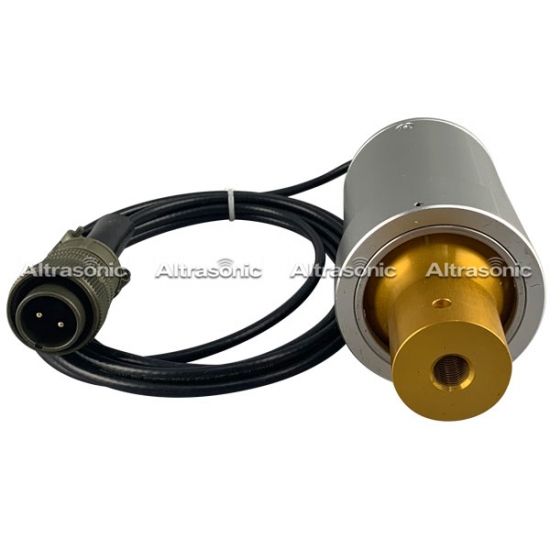

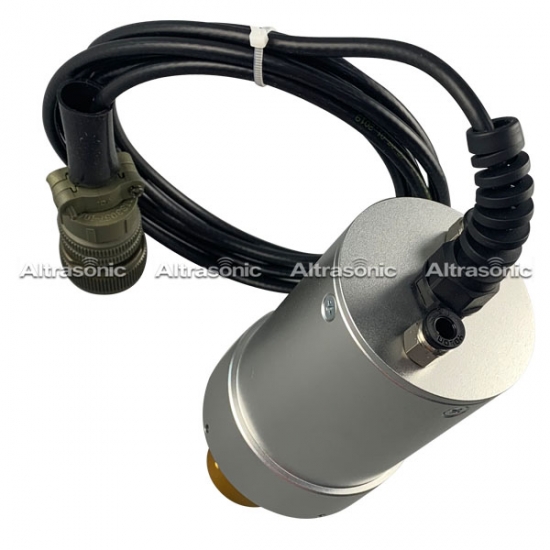

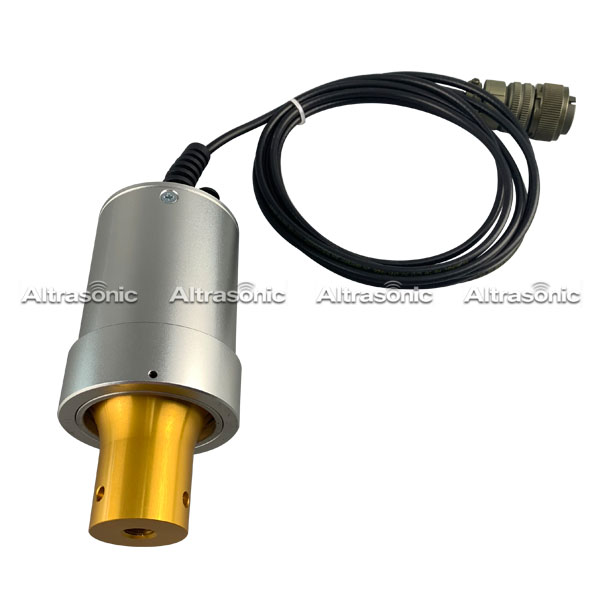

Dukane Converter Replacement Ultrasonic Converter 20 Khz with outcovering and connecting cable

The 20K ultrasonic converter  is applied to dukane ultrasonic welding machine.

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

  • Item No.:

    HS-D41S30
  • Payment:

    T/T, Paypal, Western Union
  • Price:

    $798/piece
  • Product origin:

    China
  • Color:

    golden
  • Shipping port:

    Shanghai / Ningbo
  • Product Details


20Khz Ultrasonic Replacement Converter with 4 Ceramics Golden Valve for Non Woven Welding



Specifications:


Model HS-D41S30
Frequency 20khz
Output power 2000-3000watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50mm
Quantity of Ceramic discs 4 pcs
Material Titanium
Amplitude 20um
Application Welding



Advantages:


  • High Efficiency: of high mechanical factor. High transfer efficiency is obtained when working in resonance frequency.
  • Big amplitude: designed and chosen by computer, high oscillation speed and big amplitude in front operculum.
  • Big Power: under the function of the prestressed force screw rod, the piezoelectric ceramics can work freely in the highest level of power.
  • In good heat resistance: of small resonance impedance, less heat produced, can be used in a wide range of temperature with long life and high reliability.





What we can do for you?

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
