20Khz Ultrasonic Integrated Plastic Welding Machine with Digital Generator

  • China
  • Altrasonic
  • 1

  • Contact Now
Product Details

20Khz Ultrasonic Integrated Plastic Welding Machine with Digital Generator


Description:

Ultrasonic plastic welding machine is a high - tech technology for welding thermoplastic products. The advantage of ultrasonic plastic welding is to increase productivity, reduce cost, improve product quality and safety production. Ultrasonic welding equipment can be easily customized to fit the exact specifications of the parts being welded.

It is typically used with small parts (e.g. cell phones, consumer electronics, disposable medical tools, toys, etc.), but it can be used on parts as large as a small automotive instrument cluster.

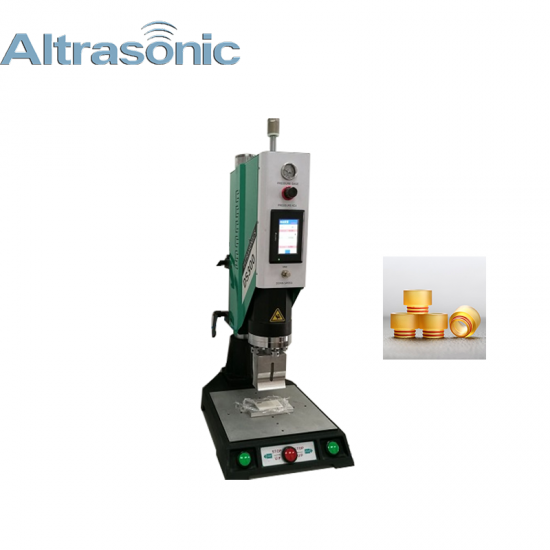

ultrasonic integrated plastic welder



Applications:

Toy industry: such as toy gun, water gun, telephone and rag baby etc.

Electronic industry: The gum case of watch, nylon watch band, calculator, sound box wraps hull, cell phone battery etc.

Car industry: Car light.

Pack an industry: Disguise box, PVC packing box, toothpaste tube etc.

General business ware: The typewriter color take, video cassette rack, tape box, computer disk etc.



Specifications:



Model

HS-20

HS-15

HS-H20

HS-H15

HS-28

Frequency

20KHZ

15KHZ

15KHZ

15KHZ

28KHZ

Output Power

1,500W

2600W

2400W

4200W

800W

Welding Capability

130 m/m φ

160 ~ 200 m/m φ

160 ~ 200 m/m φ

160 ~ 200 m/m φ

8 ~ 20 m/m φ

Dimension

420 x 630 x 920 mm

420 x 630 x 920 mm

420 x 630 x 920 mm

420 x 630 x 920 mm

420 x 630 x 920 mm

Net Weight

95 kg

110 kg

110 kg

110 kg

95 kg

Line Source

220V 10A

220V 10A  / 220V 15A

220V 10A  / 220V 15A

220V 10A  / 220V 18A

220V 5A



Competitive Advantage:


 1. Titanium materials and Aluminum materials optional.

 2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

 3. One by one testing to ensure that each transducer performance are excellent.

 4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.


Service: Timely feedback; Free design; 1 year Warranty.

Quality: Full testing before shipping; we reputation from customer.
