20Khz Ultrasonic Food Cutting Equipment 800W , Professional Meat Slicer Machine

Product Details

20Khz Ultrasonic Food Cutting Equipment 800W , Professional Meat Slicer Machine



Description:



Ultrasonic food processing involves a vibrating knife producing a nearly frictionless surface which does not deform food products and to which they do not stick. The surface cleanly cuts or slits products including fillers such as nuts, raisins, dried fruit or chocolate morsels without displacement or plowing.

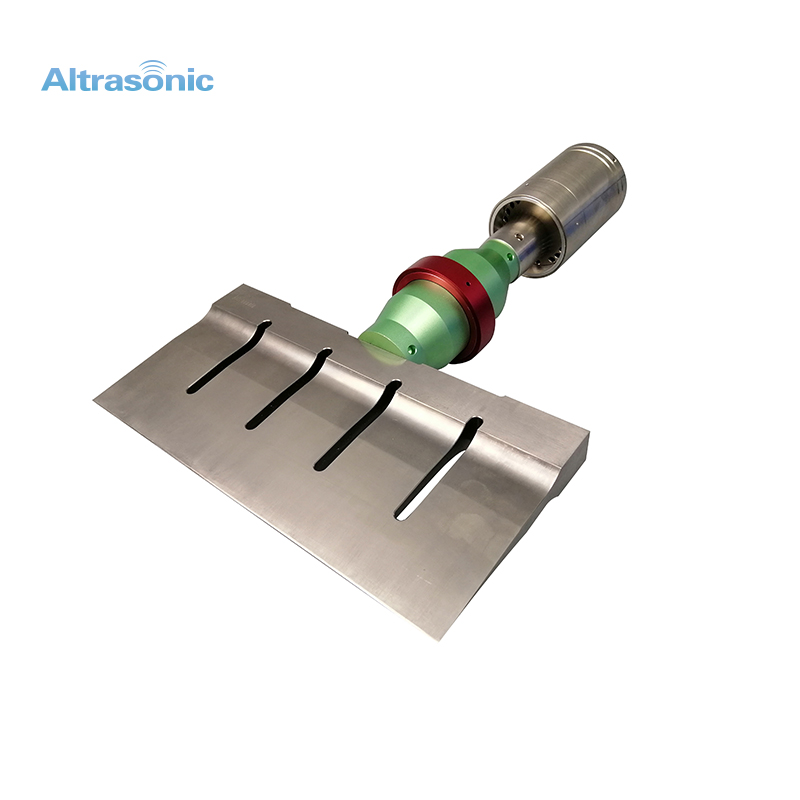

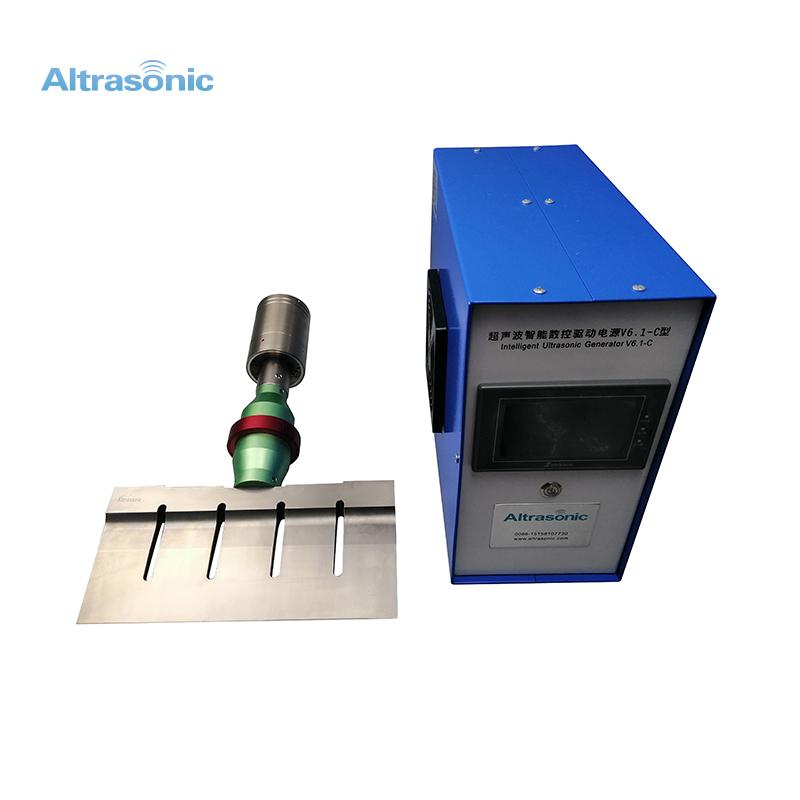

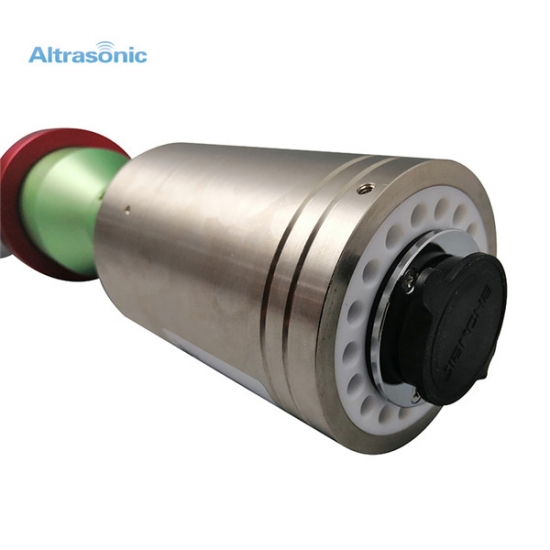

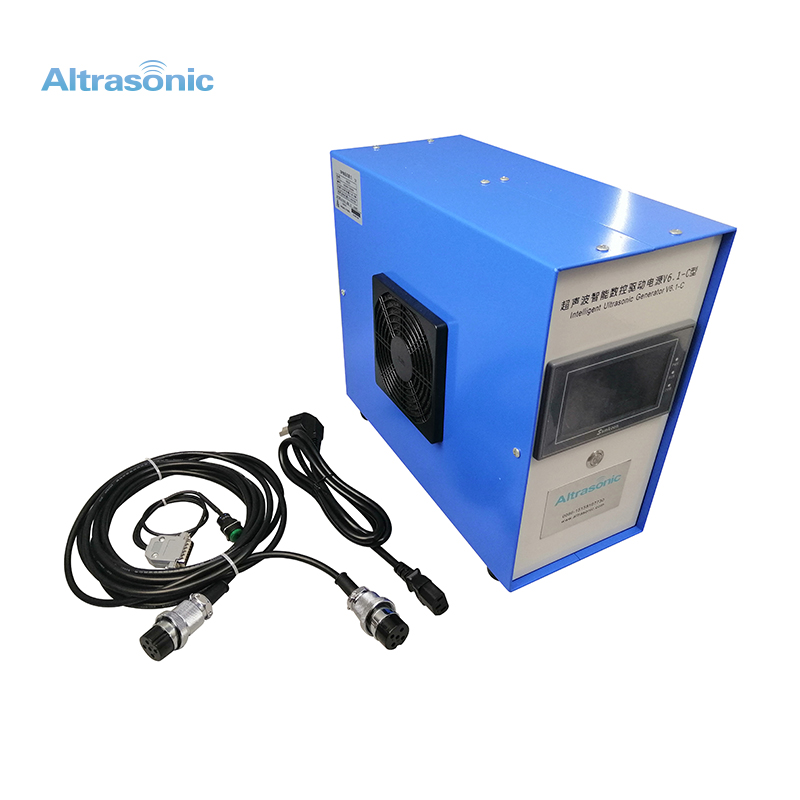

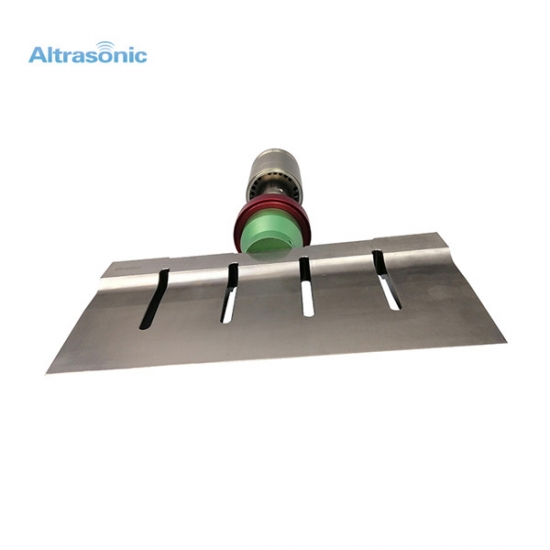

The ultrasonic food cutting machine (cutter) is composed of ultrasonic transducer (converter) with cover, booster, titanium blade and digital generator.


They are small in size and do not require large installation areas. Special equipment is not required for the installation. They can be attached to automated machinery arms.



In the ultrasonic cutter, the piezoelectric element generates a force that resonates the whole body, from the transducer to the blade tip, generating a large vibration at the tip. The oscillator periodically generates voltage to resonate and drive the transducer. Using a component of the ultrasonic cutter called the horn to wring the cross-sectional area, from the piezoelectric element to the blade tip, can obtain a larger vibration.



The difference between traditional cutting and ultrasonic cutting


Ultrasonic cutting machine is the use of wave energy for cutting equipment, the main t feature is not to use the traditional edge.
The traditional cutting utilizes a tool with a sharp edge to press the cutting material. The pressure is concentrated at the edge of the blade, the pressure is very large, more than the shear strength of the cutting material , then the material is cut open. As the material is cut by a strong pressure, so the cutting tool edge should be very sharp and the material itself has to bear the relatively large pressure. Therefore the cutting effect for the soft, flexible material is not good, especially more difficult for sticky material.



Specification:



Frequency

20Khz

Power

800W

Input

AC110-240V, 50/60Hz

Power Controller

stepping or continuous

Length of the blade

255mm

Material Of Cutting Head

stainless steel, titanium alloy, alloy steel.

Machine Wight

15~18KG

Accessories

foot switch, additional blade

Cooling Device

compressed air mouth can be installed.

Cable Length

3M or customized

Foot Switch

available



Advantages:

  • Cutting speeds can be increased substantially
  • The vibration of the ultrasonic food processing system using high frequency wave to quickly cut food;
  • Greatly reduced normal down time for clean up

  • Provides a new way to cut piece, cutting, steering, and transfer alignment or different kinds of food;
  •  Makes the cost of production flow minimization;

  • Especially for cutting high viscosity food;
  • Cutting is very hygienic;
  • The cut food looks neat and beautiful;
  • Suitable for automated assembly line, do not have to make a lot of changes to the original line, saving production costs.
