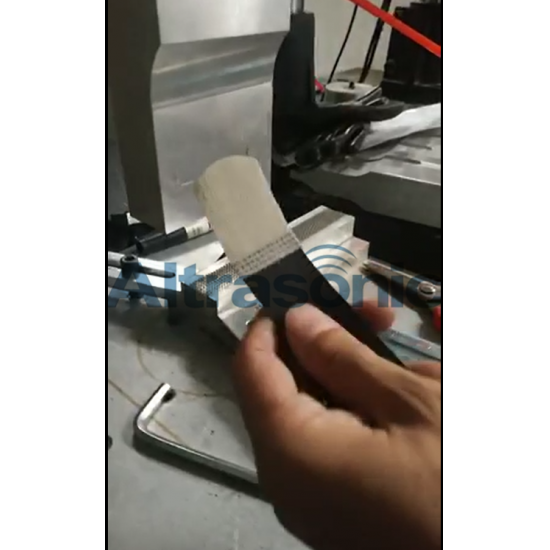

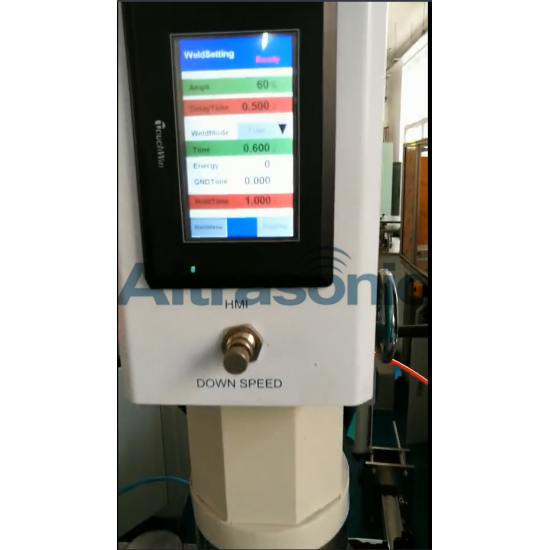

20Khz LCD Screen Ultrasonic Plastic Welding Machine for Mending Velcro Packing Belt

  • China
  • Altrasonic
  • 1

  • Contact Now
Product Details

20Khz LCD Screen Ultrasonic Plastic Welding Machine for Mending Velcro Packing Belt


Description:

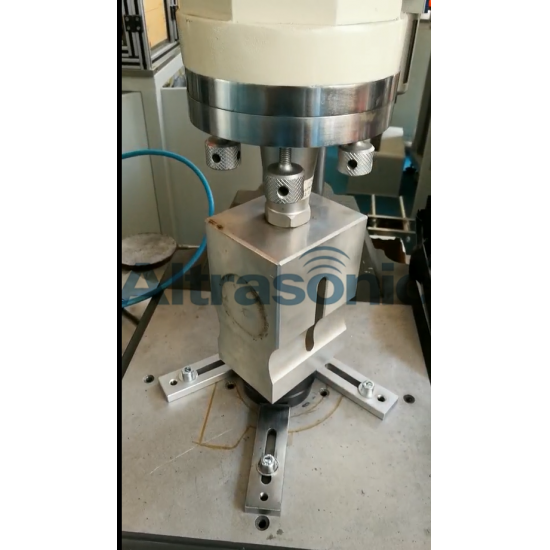

Ultrasonic welding equipment can be easily customized to fit the exact specifications of the parts being welded. The parts are sandwiched between a fixed shaped nest (anvil) and a sonotrode (horn) connected to a transducer, and a ~20 kHz low-amplitude acoustic vibration is emitted. (Note: Common frequencies used in ultrasonic welding of thermoplastics are 15 kHz, 20 kHz, 30 kHz, 35 kHz, 40 kHz and 70 kHz). When welding plastics, the interface of the two parts is specially designed to concentrate the melting process. One of the materials usually has a spiked energy director which contacts the second plastic part. The ultrasonic energy melts the point contact between the parts, creating a joint. This process is a good automated alternative to glue, screws or snap-fit designs. It is typically used with small parts (e.g. cell phones, consumer electronics, disposable medical tools, toys, etc.) but it can be used on parts as large as a small automotive instrument cluster.



Applications:



Toy industry: such as toy gun, water gun, telephone and rag baby etc.

Electronic industry: The gum case of watch, nylon watch band, calculator, sound box wraps hull, cell phone battery etc.

Car industry: Car light.

Pack an industry: Disguise box, PVC packing box, toothpaste tube etc.

General business ware: The typewriter color take, video cassette rack, tape box, computer disk etc.



Specifications:

Item No

HS-X20P

HS-X15P

Frequency

20Khz

15Khz

Power

1500W

3300W

Voltage

200-240V, Alternating current

200-240V,Alternating current

50-60hz, Single phase

50-60hz, Single phase

Electric current

10A

20A

Range of welding time

0.05-10/sec

0.05-10/sec

Environment Temperature

5-50℃

5-50℃

Air supply requirements

Clean dry compressed air, maximum pressure 7kg

Clean dry compressed air, maximum pressure 7kg

Maximum pressure

1.96KN

2.89KN

Maximum stroke

100MM

100MM

Beats

80/Min

50/Min

Triggered Dynamic range

67-890N

135-990N

Weight

66Kgs

68Kgs

Dimension

476mm(L)*736mm(W)*1524mm(H)

476mm(L)*736mm(W)*1524mm(H)




Advantages

It can be applied to miscellaneous combination of material welding and allows welding of thick and thin sections.

Simplified welding of high and heat conduction materials such as copper, gold, aluminum, silver, etc.

he pressures used for welding are low along with low consumption power.

The time taken for welding is less and the width of deformed areas are thinner than that for the cold welding.

Disadvantages

Ultrasonic metal welding needs more power with the work piece as width and hardness increase exponentially.

This welding process is limited to lap joints.

It is dependent on material deformation under tooling.

It might create audible noise from the part resonance.

Ultrasonic welding is largely used in microelectronics devices and finishing technology and incorporated circuit element of interconnection.
