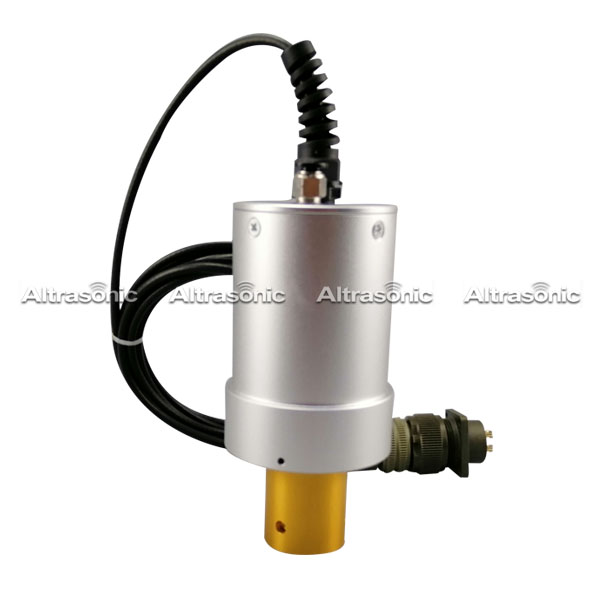

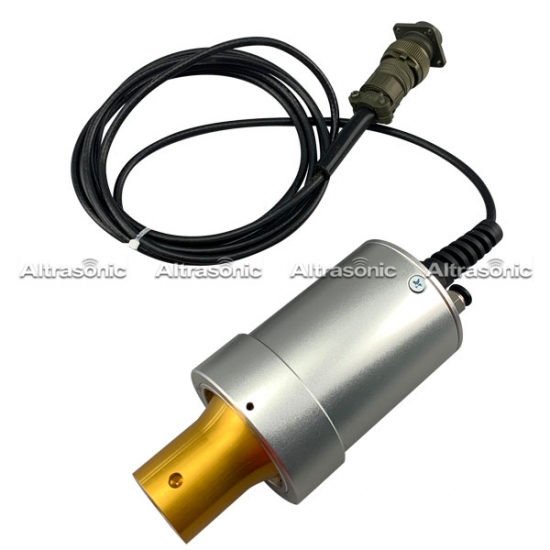

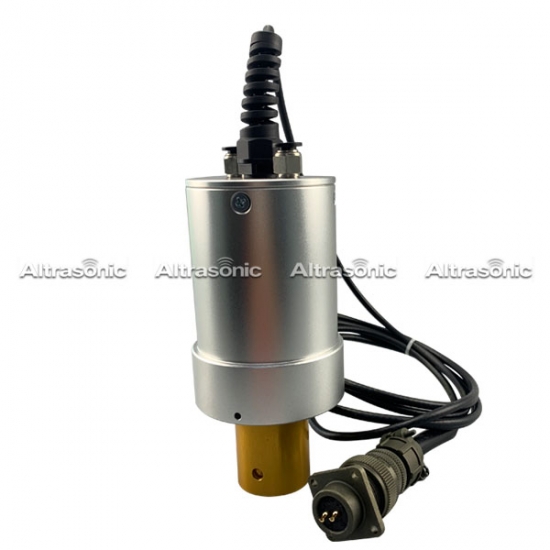

20K Ultrasonic Transducer Replacement of Dukane 41S30 with Air Cooling Installation

  • China
  • Altrasonic
  • Silver
  • 1

  • Contact Now
Product Details

20K Ultrasonic Transducer Replacement of Dukane 41S30 with Air Cooling Installation

Description:



Dukane 41S30 Replacement Ultrasonic Converter  Ultrasonic Welding Transducer is applied to Dukane type ultrasonic welding machine.



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.


20khz41s30 ultrasonic transducer

Specification:


Model HSD41S30
Frequency 20 khz
Output power 1000-3000 watt
Joint bolt M18 *1.5
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 4 pcs
Capacitance 11000pf
Amplitude 20 um
Application welding machine



Our transducer can applied in the following ultrasonic machines:

ultrasonic application


Competitive Advantage:



1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

20Khz Dukane 41S30
