1000W Ultrasonic Biodiesel Process Equipment Pipe Cavitation

Product Details

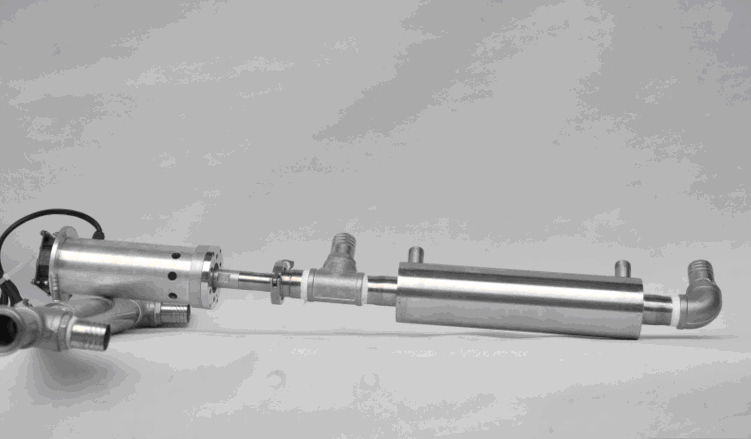

1000W Ultrasonic Biodiesel Process Equipment Pipe Cavitation



Minimum Order Quantity:

1 Set

Price:

Ask for quote

Packaging Details:

Foam case

Delivery Time:

In 7 Working Days

Payment Terms:

T/T, WESTERN UNION

Supply Ability:

100 Sets/Month



Quick Detail:

Simple, low-cost design
Low operating costs
High efficiency
Low maintenance
Faster emulsification



Description:

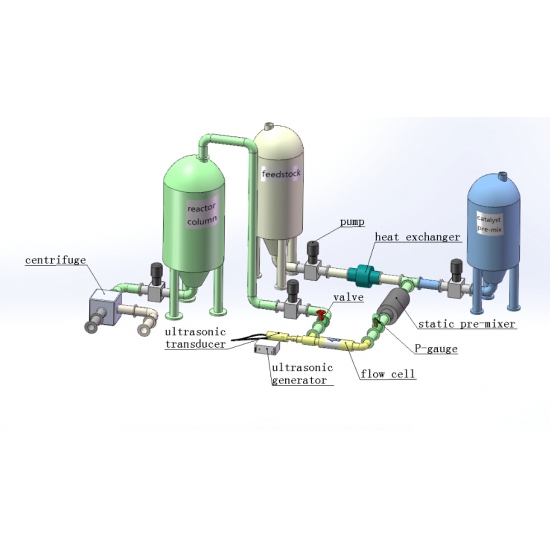

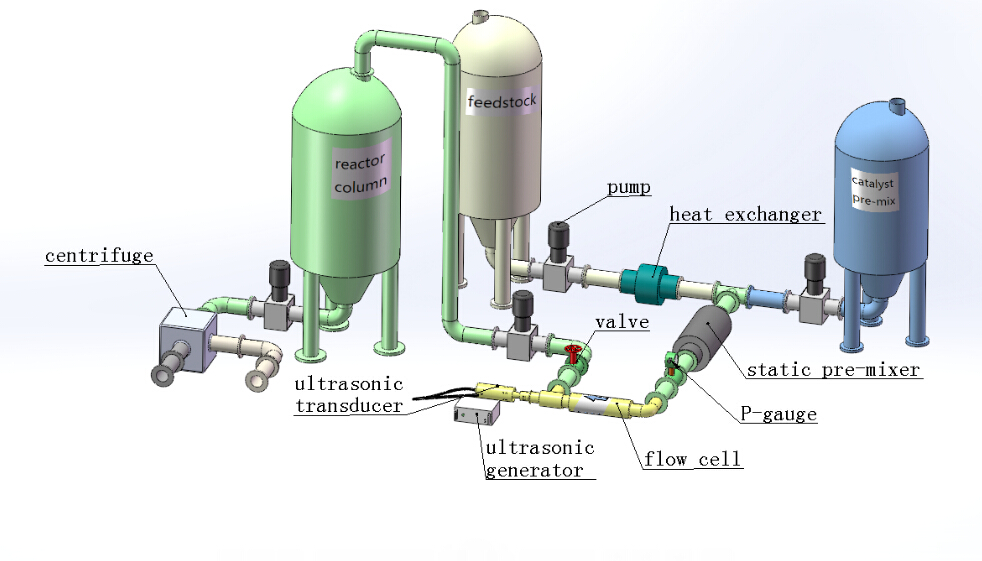

Ultrasonic Biodiesel Process Equipment is suitable for Biodiesel production. This allows changing the production from batch processing to continuous flow processing and it reduces investment and operatioal costs. The manufacturing of biodiesel from vegetable oils or animal fats, involves the base-catalyzed transesterification of fatty acids with methanol or ethanol to give the corresponding methyl esters or ethyl esters. Ultrasonication can achieve a biodiesel yield in excess of 99%. Ultrasound reduces the processing time and the separation time significantly.





Applications:

Ultrasonic in the biochemistry of the earliest applications should be used ultrasonic to crush the cell wall, to release its contents. Subsequent studies showed that, low intensity ultrasonic can promote the biochemical reaction process, such as ultrasonic irradiation can increase the speed of liquid nutrition growth of algal cells, making the cells to produce proteins increased 3 times.Energy density and cavitations bubble collapse of ultrasonic field energy density, energy density is enlarged trillion times, great concentration caused by energy; sound chemistry led to the phenomenon of extreme heat and pressure cavitations effect of luminescence, is unique in form of exchange of energy and substance of sonochemistry. Therefore, ultrasonic chemical extraction, biodiesel production, organic synthesis, governance microorganisms, degradation of toxic organic pollutants, the chemical reaction speed and yield, the catalytic efficiency, biological degradation, ultrasonic anti fouling, biological cell crushing, dispersion and agglomeration, and the chemical reaction is more and more important role.





Specifications:

Model

S-P20-1000

S-P20-1500

S-P20-2000

S-P20-3000

Frequency

20±1 KHz

20±1 KHz

20±1 KHz

20±1 KHz

Power

1000 W

1500 W

2000 W

3000 W

Voltage

220±10% V

220±10% V

220±10% V

220±10% V

Temperature

300

300

300

300

Pressure

35 MPa

35 MPa

35 MPa

35 MPa

Intensity of sound

20 W/cm²

30 W/cm²

40 W/cm²

60 W/cm²

Max Capacity

> 10 L/Min

> 15 L/Min

> 20 L/Min

> 30 L/Min

Material Of Tip Head

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy

PSIf you need more power, we can install two or more device.



Competitive Advantage:

1.Save mixing time 20%~60%

2.Lower temps 30%~60%(30)

3.Less methanol 5%~30%

4.Less chemical (KOH) less 20%~50%

5.Total production cost save 15%~50%

6.Another benefit is the time of glycerol separation.This is also faster and one of the reasons for it is that less methanol is been used,so glycerol separation is faster.
