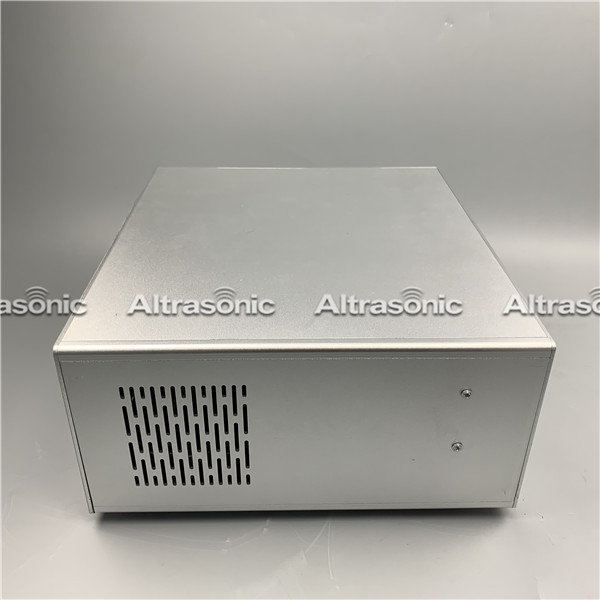

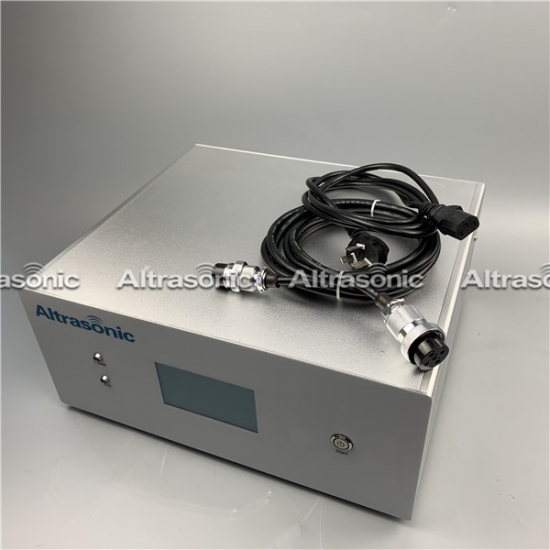

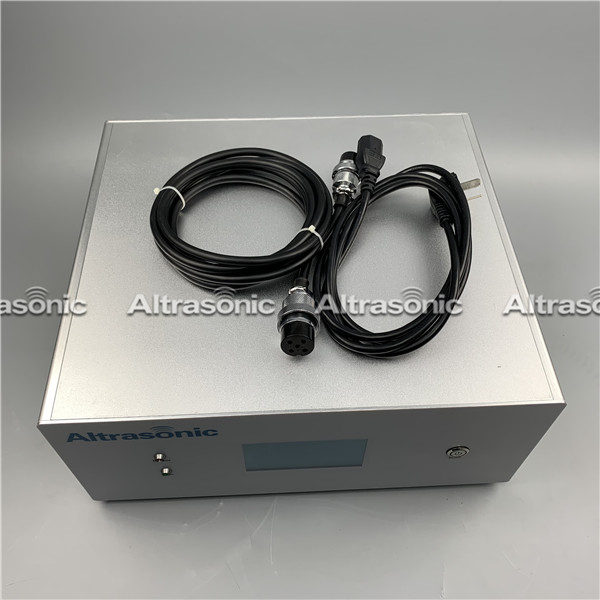

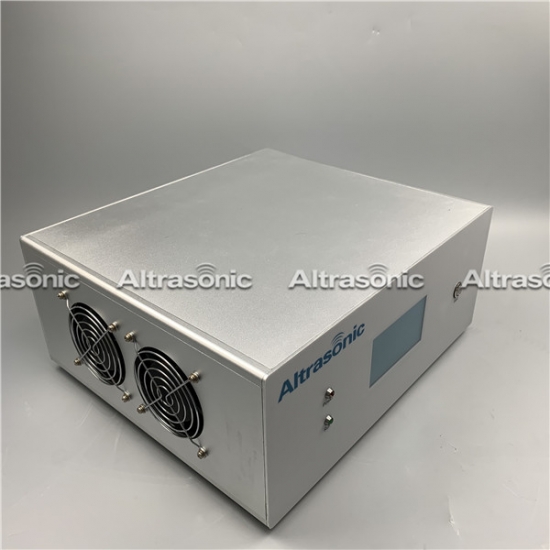

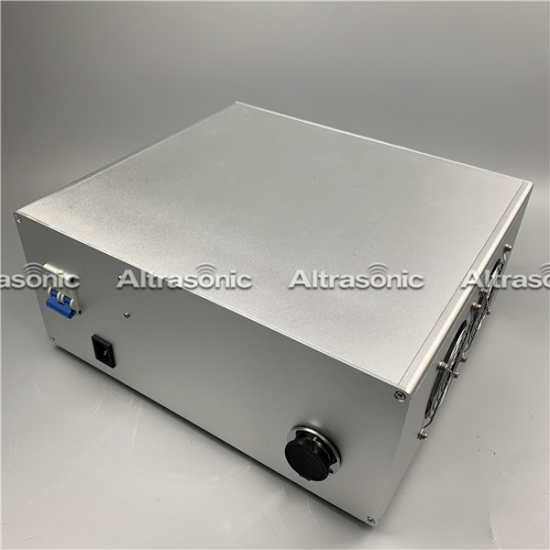

1000W 20Khz Liquid Process Used Ultrasonic Power

Product Details

Minimum Order Quantity:

1 Set

Price:

Ask for quote

Packaging Details:

Foam case

Delivery Time:

In 7 Working Days

Payment Terms:

T/T, WESTERN UNION

Supply Ability:

100 Sets/Month

Quick Detail:



Stable
High power
Low energy consumption

For Sonochemistry Ultrasonic Liquid Process





Description:



The ultrasonic generator also called ultrasonic power , It is an important part of high power ultrasonic system.





Applications:

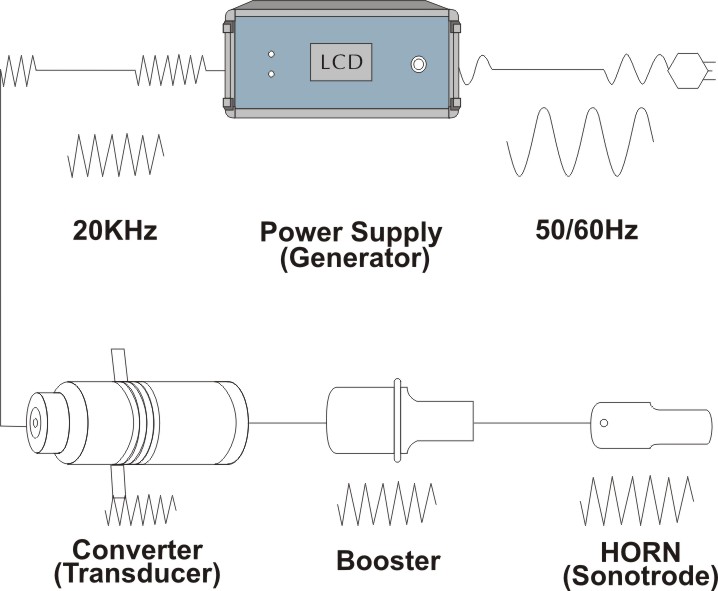

Ultrasonic generator main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer.

Ultrasonic generator is applied to all kinds of ultrasonic equipment, mainly with ultrasonic welding, ultrasonic cutting, ultrasonic chemical equipment and ultrasonic welding equipment such as non-woven fabric.





Specifications:



Model

GS-D20-1000

Frequency

20KHZ

Capacitance

500 – 30000 pF

Size

380*350*180 mm

Weight

10 KG

Output Power

1000W,1500W,2000W,3000W

Voltage

220 V    50 Hz

Temperature

≤300℃

Moisture

≤85%RH





Competitive Advantage:



★ Real time monitoring: Monitoring the system operating frequency and power

★ Parameter adjustment: According to the different requirements, adjust the power, amplitude, the running time

★ Automatic equipment with frequency: Once the initial setup, can work continuously without the need to adjust the generator.

★ The automatic amplitude control: Changing load transducer work process can automatically adjust the driving characteristics of ultrasonic tool head, ensure the stable amplitude.

★ System protection: The system work in the unsuitable operation environment, the generator will stop working and alarm display, to protect the equipment from damage.

★ Amplitude adjustment: Amplitude can instantly increase or decrease in the work process, the amplitude of the set range: 0%~100%.

★Automatic frequency search: Working frequency can be automatically measured and stored in the tool head.

★ Non resonant state (forced vibration): General driving power supply must be working in the resonant state; the power supply can be the special requirements of customers, stability in the non resonant state, very suitable for some special application of ultrasonic.





Comparison:

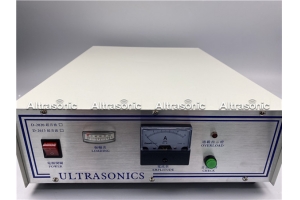

Analog generator

Digital generator

Circuit

Analog circuit, discrete components

Digital circuit, the chip control

Automatic search

×

Automatic frequency tracking

×

Frequency adjustment range

±0.15 KHz

±0.5 KHz

Power regulation

×

24 hours of continuous work

×

Non resonant condition

×

LCD

×

Add the PLC protocol

×

Automatic circuit protection

Bad, easy to cause the damage of components

Good

Repair method

Professional repair

Module replacement
